Categories	Discrete Semiconductor Products / Transistors - IGBTs - Single
Datasheet	STGx6NC60HD(-1)
Standard Package	1000
Manufacturer	STMicroelectronics
Series	PowerMESH™
Packaging	Tape & Reel (TR)
Part Status	Active
IGBT Type	-
Voltage - Collector Emitter Breakdown (Max)	600V
Current - Collector (Ic) (Max)	15A
Current - Collector Pulsed (Icm)	21A
Vce(on) (Max) @ Vge, Ic	2.5V @ 15V, 3A
Power - Max	56W
Switching Energy	20µJ (on), 68µJ (off)
Input Type	Standard
Gate Charge	13.6nC
Td (on/off) @ 25°C	12ns/76ns
Test Condition	390V, 3A, 10Ohm, 15V
Reverse Recovery Time (trr)	21ns
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount

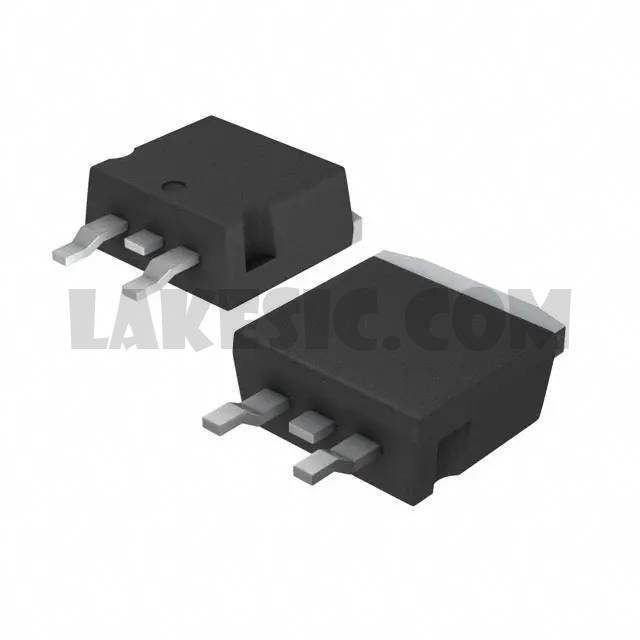

Package / Case	TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
Supplier Device Package	D2PAK
Base Part Number	STG*6NC
