AUIRGPS4070D0
AUIRGPS4070D0

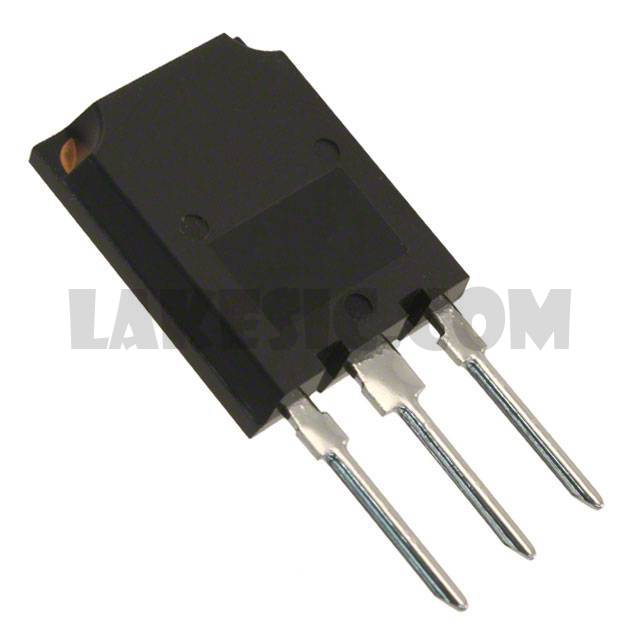

Part Number AUIRGPS4070D0 Description IGBT 700V SUPER PG-TO274-3-903 Package / Case TO-274AAUnit Price Request a QuoteLead Time To be ConfirmedDetailed Description IGBT Trench 600V 240A 750W Through Hole PG-TO274-3-903
To learn about the specification of AUIRGPS4070D0, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add AUIRGPS4070D0 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of AUIRGPS4070D0.
We are offering AUIRGPS4070D0 for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
AUIRGPS4070D0 - Product Attributes
Categories
Discrete Semiconductor Products / Transistors - IGBTs - Single
Datasheet AUIRGPS4070D0 Standard Package 25 Manufacturer Infineon Technologies Series Automotive, AEC-Q101 Packaging Tube Part Status Active IGBT Type Trench Voltage - Collector Emitter Breakdown (Max) 600V Current - Collector (Ic) (Max) 240A Current - Collector Pulsed (Icm) 360A Vce(on) (Max) @ Vge, Ic 2V @ 15V, 120A Power - Max 750W Switching Energy 5.7mJ (on), 4.2mJ (off) Input Type Standard Gate Charge 250nC Td (on/off) @ 25°C 40ns/140ns Test Condition 400V, 120A, 4.7Ohm, 15V Reverse Recovery Time (trr) 210ns Operating Temperature -55°C ~ 175°C (TJ) Mounting Type Through Hole Package / Case TO-274AA Supplier Device Package PG-TO274-3-903
