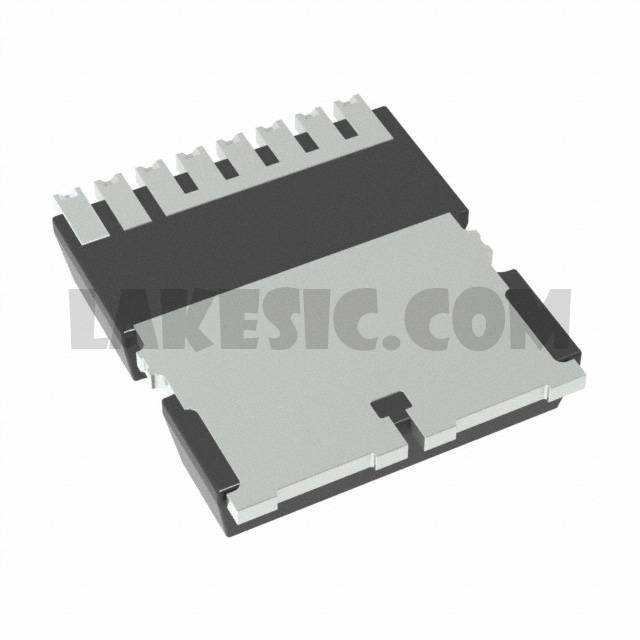

STO36N60M6

STO36N60M6

Part NumberSTO36N60M6

ManufacturerSTMicroelectronics

DescriptionN-CHANNEL 600 V, 0.85 OHM TYP.,

DatasheetSTO36N60M6 Datasheet

Package / Case8-PowerSFN

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 600V 30A (Tc) 230W (Tc) Surface Mount TOLL (HV)

To learn about the specification of STO36N60M6, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add STO36N60M6 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of STO36N60M6.
We are offering STO36N60M6 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

STO36N60M6 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	STO36N60M6 Datasheet
Standard Package	1
Manufacturer	STMicroelectronics
Series	MDmesh™ M6
Packaging	Cut Tape (CT)
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	600V
Current - Continuous Drain (Id) @ 25°C	30A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	99mOhm @ 15A, 10V
Vgs(th) (Max) @ Id	4.75V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	44.3nC @ 10V
Vgs (Max)	±25V
Input Capacitance (Ciss) (Max) @ Vds	1960pF @ 100V
FET Feature	-
Power Dissipation (Max)	230W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	TOLL (HV)
Package / Case	8-PowerSFN
