TPH3208PS
TPH3208PS

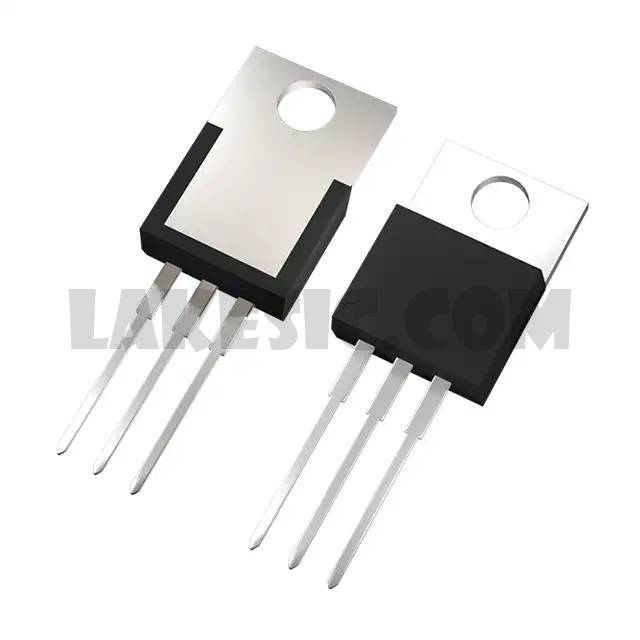

Part Number TPH3208PS Description GANFET N-CH 650V 20A TO220 Package / Case TO-220-3Unit Price Request a QuoteLead Time To be ConfirmedDetailed Description N-Channel 650V 20A (Tc) 96W (Tc) Through Hole TO-220AB
To learn about the specification of TPH3208PS, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add TPH3208PS with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of TPH3208PS.
We are offering TPH3208PS for competitive price in the global market, please send us a quota request for pricing. Thank you!
Payment Methods
Delivery Services
TPH3208PS - Product Attributes
Categories
Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet TPH3208PS Standard Package 50 Manufacturer Transphorm Series - Packaging Tube Part Status Active FET Type N-Channel Technology GaNFET (Gallium Nitride) Drain to Source Voltage (Vdss) 650V Current - Continuous Drain (Id) @ 25°C 20A (Tc) Drive Voltage (Max Rds On, Min Rds On) 10V Rds On (Max) @ Id, Vgs 130mOhm @ 13A, 8V Vgs(th) (Max) @ Id 2.6V @ 300µA Gate Charge (Qg) (Max) @ Vgs 14nC @ 8V Vgs (Max) ±18V Input Capacitance (Ciss) (Max) @ Vds 760pF @ 400V FET Feature - Power Dissipation (Max) 96W (Tc) Operating Temperature -55°C ~ 150°C (TJ) Mounting Type Through Hole Supplier Device Package TO-220AB Package / Case TO-220-3
