Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	EPC2037 Datasheet
Standard Package	1
Manufacturer	EPC
Series	eGaN®
Packaging	Cut Tape (CT)
Part Status	Active
FET Type	N-Channel
Technology	GaNFET (Gallium Nitride)
Drain to Source Voltage (Vdss)	100V
Current - Continuous Drain (Id) @ 25°C	1.7A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	5V
Rds On (Max) @ Id, Vgs	550mOhm @ 100mA, 5V
Vgs(th) (Max) @ Id	2.5V @ 80µA
Gate Charge (Qg) (Max) @ Vgs	0.12nC @ 5V
Vgs (Max)	+6V, -4V
Input Capacitance (Ciss) (Max) @ Vds	14pF @ 50V
FET Feature	-
Power Dissipation (Max)	-
Operating Temperature	-40°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	Die
Package / Case	Die

EPC2040	EPC, N-Channel 15V 3.4A (Ta) Surface Mount Die, eGaN®	View
EPC2012C	EPC, N-Channel 200V 5A (Ta) Surface Mount Die Outline (4-Solder Bar), eGaN®	View
EPC2012C	EPC, N-Channel 200V 5A (Ta) Surface Mount Die Outline (4-Solder Bar), eGaN®	View
EPC2031ENGRT	EPC, N-Channel 60V 31A (Ta) Surface Mount Die, eGaN®	View
EPC2203	EPC, N-Channel 80V 1.7A Surface Mount Die, Automotive, AEC-Q101, eGaN®	View
EPC2022	EPC, N-Channel 100V 60A (Ta) Surface Mount Die, eGaN®	View
TPH3206LSB	Transphorm, N-Channel 650V 16A (Tc) 81W (Tc) Surface Mount PQFN (8x8),	View
EPC2036	EPC, N-Channel 100V 1.7A (Ta) Surface Mount Die, eGaN®	View
EPC2034	EPC, N-Channel 200V 48A (Ta) Surface Mount Die, eGaN®	View
EPC2049ENGRT	EPC, N-Channel 40V 16A (Ta) Surface Mount Die, eGaN®	View
EPC2001C	EPC, N-Channel 100V 36A (Ta) Surface Mount Die Outline (11-Solder Bar), eGaN®	View
TP65H035WSQA	Transphorm, N-Channel 650V 47.2A (Tc) 187W (Tc) Through Hole TO-247-3, Automotive, AEC-Q101	View

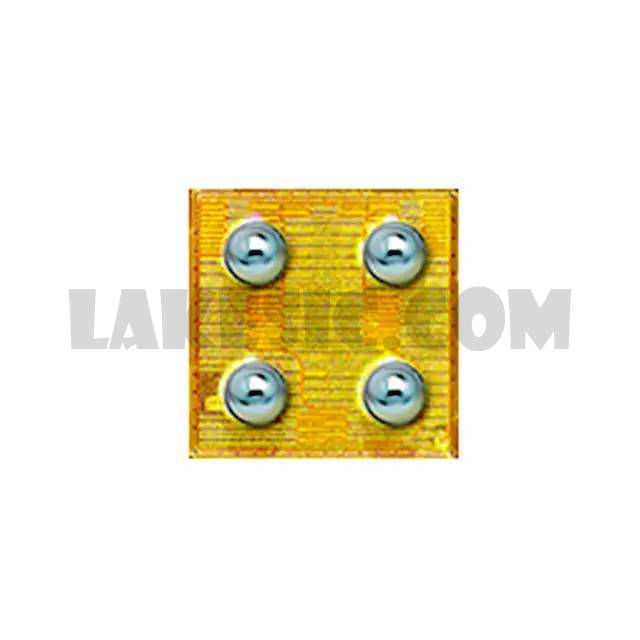

EPC2037
