TPH7R204PL,LQ

Part NumberTPH7R204PL,LQ

ManufacturerToshiba Semiconductor and Storage

DescriptionX35 PB-F POWER MOSFET TRANSISTOR

DatasheetTPH7R204PL

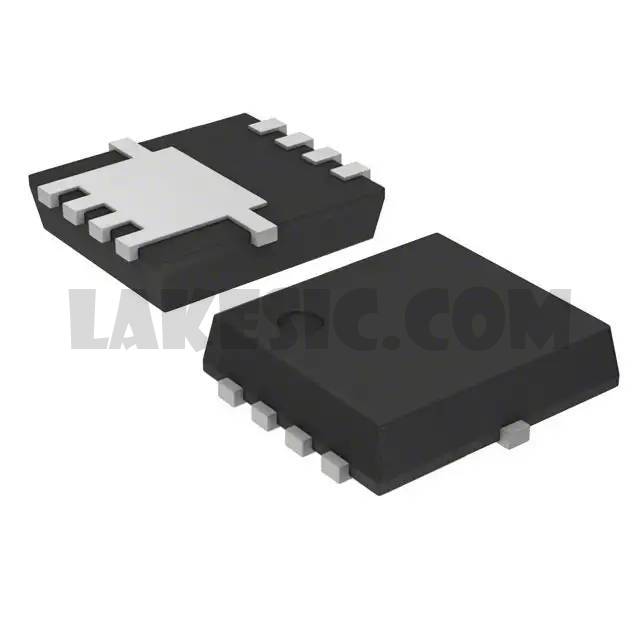

Package / Case8-PowerVDFN

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 40V 48A (Tc) 69W (Tc) Surface Mount 8-SOP Advance (5x5)

To learn about the specification of TPH7R204PL,LQ, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add TPH7R204PL,LQ with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of TPH7R204PL,LQ.
We are offering TPH7R204PL,LQ for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

TPH7R204PL,LQ - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	TPH7R204PL
Standard Package	3000
Manufacturer	Toshiba Semiconductor and Storage
Series	U-MOSIX-H
Packaging	Tape & Reel (TR)
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	40V
Current - Continuous Drain (Id) @ 25°C	48A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	9.7mOhm @ 15A, 4.5V
Vgs(th) (Max) @ Id	2.4V @ 200µA
Gate Charge (Qg) (Max) @ Vgs	24nC @ 10V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	2040pF @ 20V
FET Feature	-
Power Dissipation (Max)	69W (Tc)
Operating Temperature	175°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	8-SOP Advance (5x5)
Package / Case	8-PowerVDFN
