TSM7ND65CI

TSM7ND65CI

Part NumberTSM7ND65CI

ManufacturerTaiwan Semiconductor Corporation

Description650V 7A SINGLE N-CHANNEL POWER M

DatasheetTSM7ND65CI

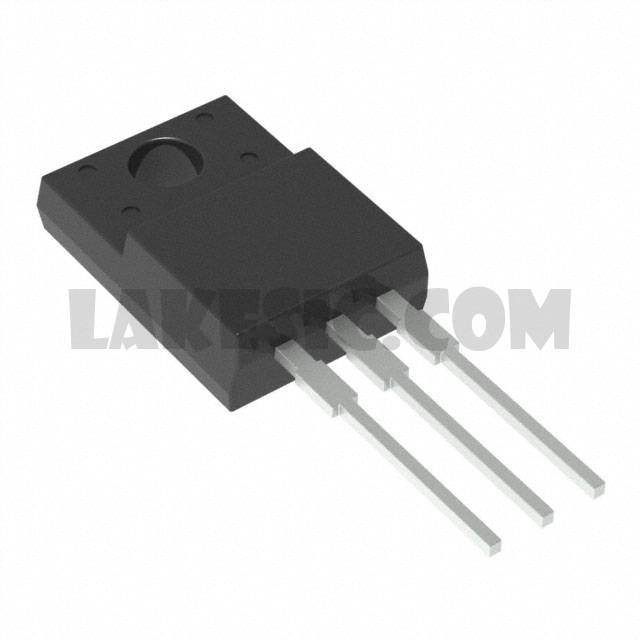

Package / CaseTO-220-3 Full Pack, Isolated Tab

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 650V 7A (Tc) 50W (Tc) Through Hole ITO-220

To learn about the specification of TSM7ND65CI, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add TSM7ND65CI with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of TSM7ND65CI.
We are offering TSM7ND65CI for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

TSM7ND65CI - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	TSM7ND65CI
Standard Package	50
Manufacturer	Taiwan Semiconductor Corporation
Series	-
Packaging	Tube
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	650V
Current - Continuous Drain (Id) @ 25°C	7A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Max) @ Id, Vgs	1.35Ohm @ 1.8A, 10V
Vgs(th) (Max) @ Id	3.8V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	25nC @ 10V
Vgs (Max)	±30V
Input Capacitance (Ciss) (Max) @ Vds	1124pF @ 50V
FET Feature	-
Power Dissipation (Max)	50W (Tc)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	ITO-220
Package / Case	TO-220-3 Full Pack, Isolated Tab
