Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	TVX Series Datasheet
Standard Package	150
Manufacturer	Nichicon
Series	TVX
Packaging	Bulk
Part Status	Active
Capacitance	220µF
Tolerance	±20%
Voltage - Rated	200V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	2000 Hrs @ 85°C
Operating Temperature	-40°C ~ 85°C
Polarization	-
Ratings	-
Applications	General Purpose
Lead Spacing	-
Size / Dimension	0.91" Dia x 1.65" H (23.0mm x 42.0mm)
Height - Seated (Max)	1.654" (42.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole

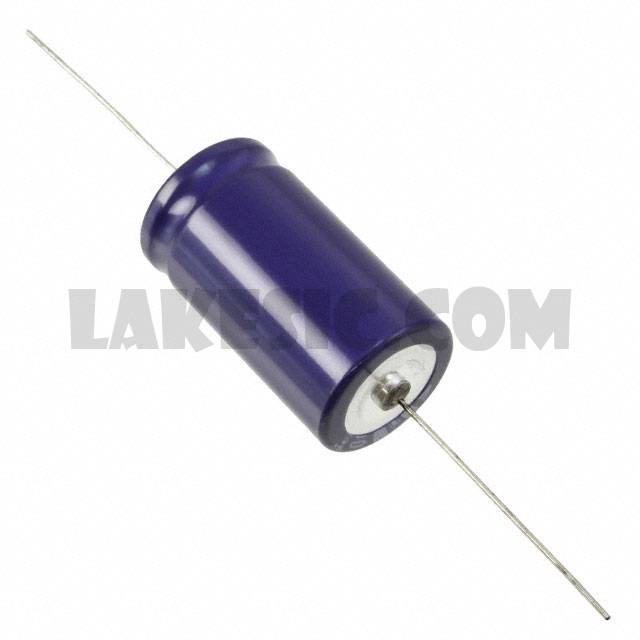

Package / Case	Axial, Can
