Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	UCP Series
Standard Package	50
Manufacturer	Nichicon
Series	UCP
Packaging	Bulk
Part Status	Active
Capacitance	150µF
Tolerance	±20%
Voltage - Rated	400V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	10000 Hrs @ 105°C
Operating Temperature	-25°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	890mA @ 120Hz
Ripple Current @ High Frequency	1.335A @ 100kHz
Lead Spacing	0.295" (7.50mm)
Size / Dimension	0.709" Dia (18.00mm)
Height - Seated (Max)	1.319" (33.50mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

UCPW6181MHD	Nichicon, 180µF 420V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, UCP	View
UCP2G151MHD6	Nichicon, 150µF 400V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, UCP	View
UCP2G330MPD	Nichicon, 33µF 400V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, UCP	View
UCP2W560MHD	Nichicon, 56µF 450V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, UCP	View
UCPW6121MHD	Nichicon, 120µF 420V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, UCP	View
UCP2G560MHD	Nichicon, 56µF 400V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, UCP	View
UCP2W121MHD6	Nichicon, 120µF 450V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, UCP	View
UCP2W270MPD	Nichicon, 27µF 450V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, UCP	View
UCP2W121MHD	Nichicon, 120µF 450V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, UCP	View
UCP2G221MHD	Nichicon, 220µF 400V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, UCP	View
UCP2W181MHD	Nichicon, 180µF 450V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, UCP	View
UCP2W151MHD	Nichicon, 150µF 450V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, UCP	View

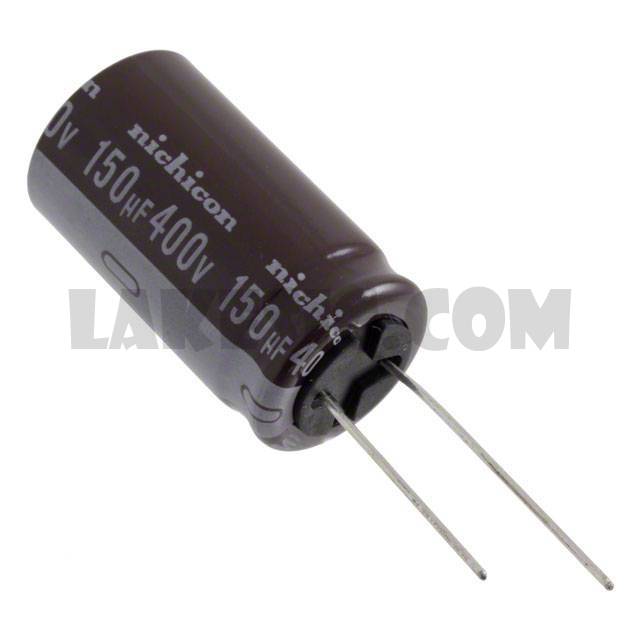

UCP2G151MHD6

Part NumberUCP2G151MHD6
