Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	UDB Series Datasheet
Standard Package	250
Manufacturer	Nichicon
Series	UDB
Packaging	Bulk
Part Status	Active

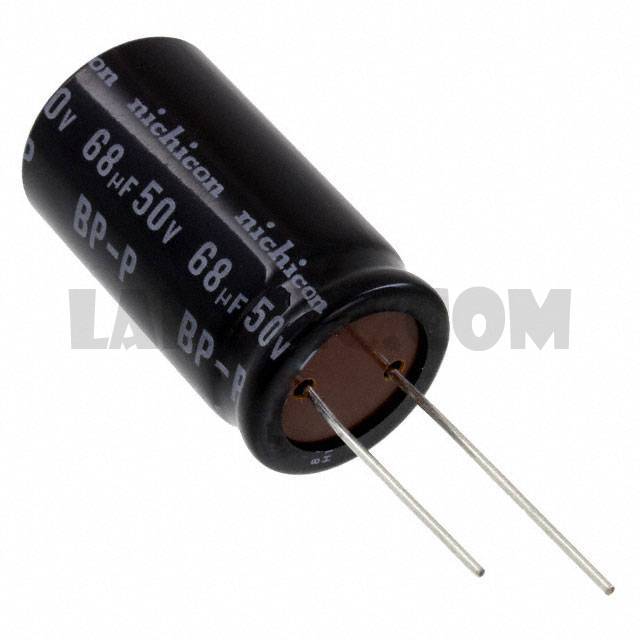

Capacitance	68µF
Tolerance	±20%
Voltage - Rated	50V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	1000 Hrs @ 85°C
Operating Temperature	-40°C ~ 85°C
Polarization	Bi-Polar
Ratings	-
Applications	Audio
Ripple Current @ Low Frequency	1.2A @ 290Hz
Lead Spacing	0.394" (10.00mm)
Size / Dimension	0.866" Dia (22.00mm)
Height - Seated (Max)	1.654" (42.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

UDB1H3R3MPM1TD	Nichicon, 3.3µF 50V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 85°C, UDB	View
UDB1H010MPM	Nichicon, 1µF 50V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 85°C, UDB	View
UDB1H2R2MPM	Nichicon, 2.2µF 50V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 85°C, UDB	View
UDB1H6R8MHM1TO	Nichicon, 6.8µF 50V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 85°C, UDB	View
UDB1H6R8MHM1TO	Nichicon, 6.8µF 50V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 85°C, UDB	View
UDB1H330MHM	Nichicon, 33µF 50V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 85°C, UDB	View
UDB1H4R7MPM	Nichicon, 4.7µF 50V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 85°C, UDB	View
UDB1H150MHM1TO	Nichicon, 15µF 50V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 85°C, UDB	View
UDB1H220MHM1TN	Nichicon, 22µF 50V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 85°C, UDB	View
UDB1H150MHM	Nichicon, 15µF 50V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 85°C, UDB	View
UDB1H1R5MPM1TD	Nichicon, 1.5µF 50V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 85°C, UDB	View
UDB1H2R2MPM1TD	Nichicon, 2.2µF 50V Aluminum Electrolytic Capacitors Radial, Can 1000 Hrs @ 85°C, UDB	View

UDB1H680MRM

Part NumberUDB1H680MRM
