ULN2003F12FN-7

Part NumberULN2003F12FN-7

ManufacturerDiodes Incorporated

DescriptionIC PWR RELAY N-CHAN U-DFN3030-10

DatasheetULN2003V,F12 Datasheet

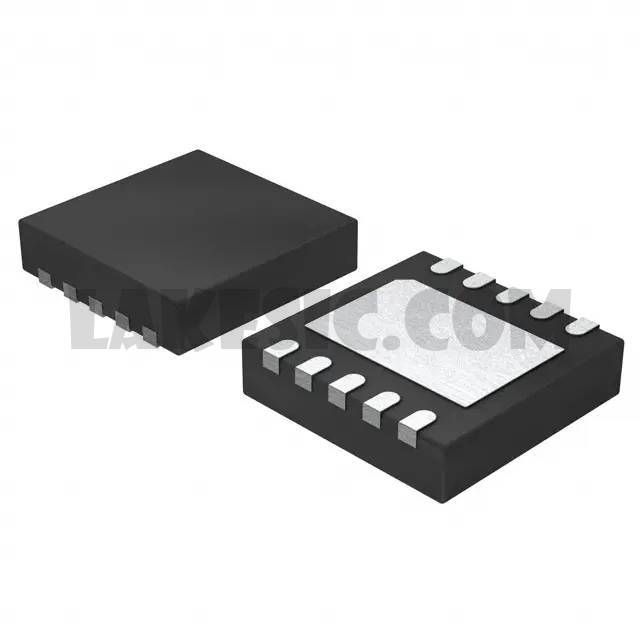

Package / Case10-UFDFN Exposed Pad

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionBipolar (BJT) Transistor Array 4 NPN Darlington (Quad) 20V 500mA Surface Mount U-DFN3030-10

To learn about the specification of ULN2003F12FN-7, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add ULN2003F12FN-7 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of ULN2003F12FN-7.
We are offering ULN2003F12FN-7 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

ULN2003F12FN-7 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - Bipolar (BJT) - Arrays
Datasheet	ULN2003V,F12 Datasheet
Standard Package	3000
Manufacturer	Diodes Incorporated
Series	-
Packaging	Tape & Reel (TR)
Part Status	Active
Transistor Type	4 NPN Darlington (Quad)
Current - Collector (Ic) (Max)	500mA
Voltage - Collector Emitter Breakdown (Max)	20V
Vce Saturation (Max) @ Ib, Ic	1.6V @ 500µA, 350mA
Current - Collector Cutoff (Max)	50µA
DC Current Gain (hFE) (Min) @ Ic, Vce	-
Power - Max	-
Frequency - Transition	-
Operating Temperature	-40°C ~ 125°C (TJ)
Mounting Type	Surface Mount
Package / Case	10-UFDFN Exposed Pad
Supplier Device Package	U-DFN3030-10
