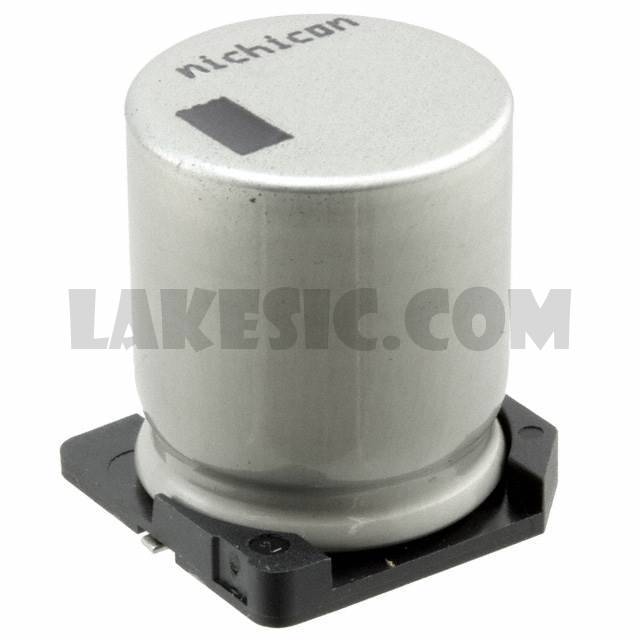

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	UUG Series
Standard Package	1
Manufacturer	Nichicon
Series	UUG
Packaging	Cut Tape (CT)
Part Status	Active
Capacitance	2200µF
Tolerance	±20%
Voltage - Rated	35V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	2000 Hrs @ 85°C
Operating Temperature	-40°C ~ 85°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	1.55A @ 120Hz
Ripple Current @ High Frequency	1.7825A @ 10kHz
Lead Spacing	-
Size / Dimension	0.709" Dia (18.00mm)
Height - Seated (Max)	0.886" (22.50mm)
Surface Mount Land Size	0.752" L x 0.752" W (19.10mm x 19.10mm)
Mounting Type	Surface Mount
Package / Case	Radial, Can - SMD
