Categories	Inductors, Coils, Chokes / Wireless Charging Coils
Datasheet	WT-525225-20K2-A1-G Datasheet
Standard Package	72
Manufacturer	TDK Corporation
Series	WT
Part Status	Active
Function	Transmitter
Type	1 Coil, 2 Layer
Inductance	24µH
Tolerance	±10%
DC Resistance (DCR)	100mOhm Max
Q @ Freq	80 @ 100kHz
Current Rating (Amps)	-
Current - Saturation	-
Frequency - Self Resonant	-
Operating Temperature	-30°C ~ 70°C
Size / Dimension	2.05" L x 2.05" W x 0.22" H (52.0mm x 52.0mm x 5.6mm)

WT202080-28F2-G	TDK Corporation, 1 Coil, 4 Layer 20.9µH Wireless Charging Coil Transmitter 300mOhm, WT	View
WT1005690-10F2-M8-G2	TDK Corporation, 3 Coil, 1 Layer 7.5µH, 8.5µH Wireless Charging Coil Transmitter 50mOhm, WT	View
WR524825-17M6-NF-G	TDK Corporation, 1 Coil, 1 Layer 16.8µH Wireless Charging Coil Receiver 750mOhm, WR	View
WT202030-16M8-G	TDK Corporation, 1 Coil, 1 Layer 6.2µH Wireless Charging Coil Transmitter 190mOhm, WT	View
WR444030-16F3-G	TDK Corporation, 1 Coil, 1 Layer 19µH Wireless Charging Coil Receiver 700mOhm, WR	View
WR524830-16F3-NF-G	TDK Corporation, 1 Coil, 1 Layer 19.5µH Wireless Charging Coil Receiver 800mOhm, WR	View
WR151580-48F2-G	TDK Corporation, 1 Coil, 4 Layer 27.1µH Wireless Charging Coil Receiver 500mOhm, WR	View
WR111180-49F5-G	TDK Corporation, 1 Coil, 3 Layer 31.8µH Wireless Charging Coil Receiver 1.34Ohm, WR	View
WT505090-20K2-A10-G	TDK Corporation, 1 Coil, 2 Layer 24µH Wireless Charging Coil Transmitter 100mOhm, WT	View
WR303050-12F5-ID	TDK Corporation, 1 Coil, 1 Layer 8.23µH Wireless Charging Coil Receiver 260mOhm, WR	View
WT525225-12F2-MA2-G	TDK Corporation, 1 Coil, 1 Layer 10.5µH Wireless Charging Coil Transmitter 60mOhm, WT	View
WR221230-36M8-G	TDK Corporation, 1 Coil, 2 Layer 27.9µH Wireless Charging Coil Receiver 1.21Ohm Max, WR	View

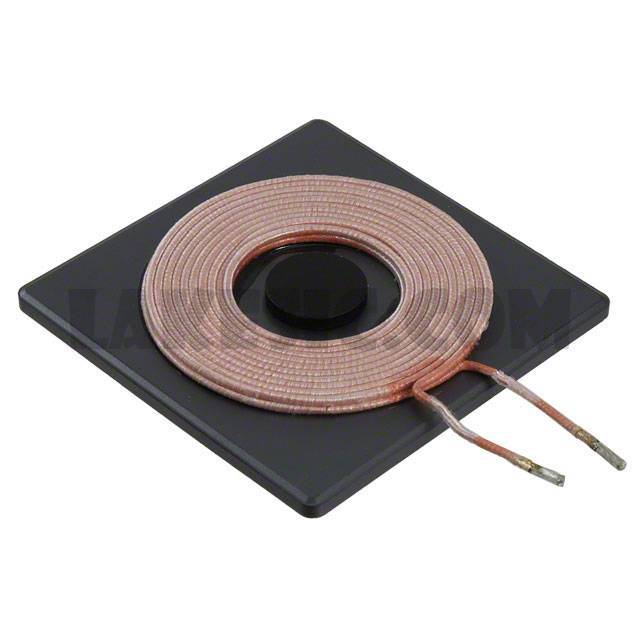

WT-525225-20K2-A1-G
