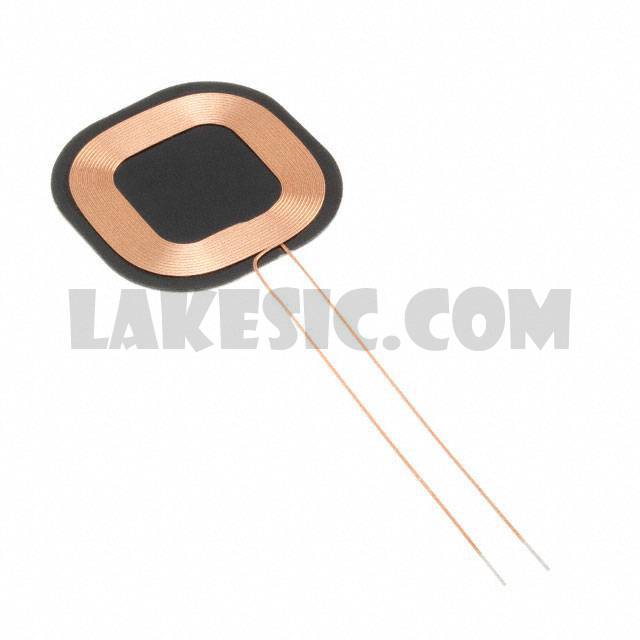

WR303050-12F5-ID


WR303050-12F5-ID

Part NumberWR303050-12F5-ID

Manufacturer

Description

Datasheet

Package / Case

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

WR303050-12F5-ID - Product Attributes

Categories Inductors, Coils, Chokes / Wireless Charging Coils
Datasheet
Standard Package288
ManufacturerTDK Corporation
SeriesWR
Part StatusActive
FunctionReceiver
Type1 Coil, 1 Layer
Inductance8.23µH
Tolerance±5%
DC Resistance (DCR)260mOhm
Q @ Freq-
Current Rating (Amps)-
Current - Saturation-
Frequency - Self Resonant-
Operating Temperature-
Size / Dimension1.18" L x 1.17" W x 0.03" H (30.0mm x 29.6mm x 0.9mm)
