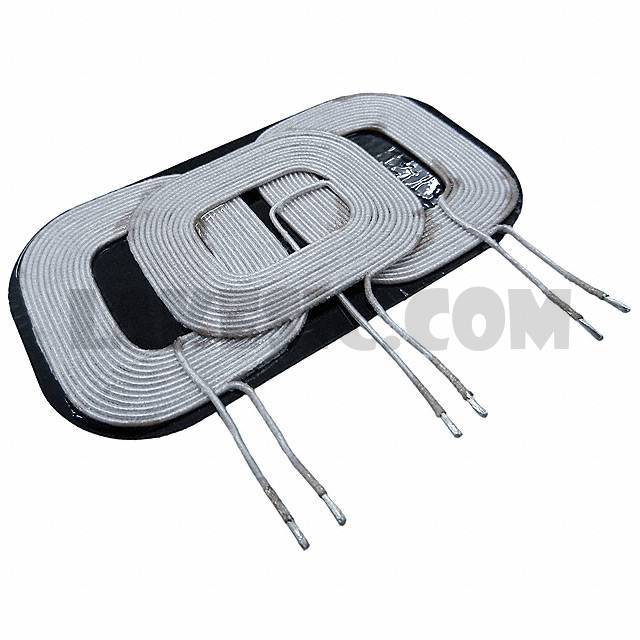

WT-1005660-12K2-A6-G


WT-1005660-12K2-A6-G

Part NumberWT-1005660-12K2-A6-G

Manufacturer

Description

Datasheet

Package / Case

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

WT-1005660-12K2-A6-G - Product Attributes

Categories Inductors, Coils, Chokes / Wireless Charging Coils
Datasheet
Standard Package36
ManufacturerTDK Corporation
SeriesWT
Part StatusActive
FunctionTransmitter
Type3 Coil, 1 Layer
Inductance12.5µH, 11.5µH, 12.5µH
Tolerance±10%
DC Resistance (DCR)80mOhm Max
Q @ Freq70 @ 100kHz
Current Rating (Amps)-
Current - Saturation-
Frequency - Self Resonant-
Operating Temperature-30°C ~ 70°C
Size / Dimension3.94" L x 2.20" W x 0.11" H (100.0mm x 56.0mm x 2.8mm)
