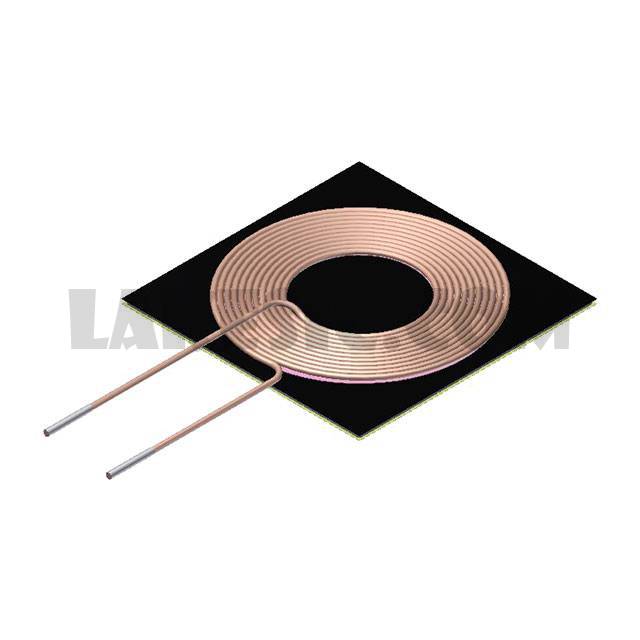

WT545490-11K2-FS


WT545490-11K2-FS

Part NumberWT545490-11K2-FS

Manufacturer

Description

Datasheet

Package / Case

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

WT545490-11K2-FS - Product Attributes

Categories Inductors, Coils, Chokes / Wireless Charging Coils
Datasheet
Standard Package176
ManufacturerTDK Corporation
SeriesWT
Part StatusActive
FunctionTransmitter
Type1 Coil, 2 Layer
Inductance8.9µH
Tolerance-
DC Resistance (DCR)60mOhm
Q @ Freq104 @ 100kHz
Current Rating (Amps)-
Current - Saturation-
Frequency - Self Resonant-
Operating Temperature-
Size / Dimension2.13" L x 2.13" W x 0.13" H (54.0mm x 54.0mm x 3.3mm)
