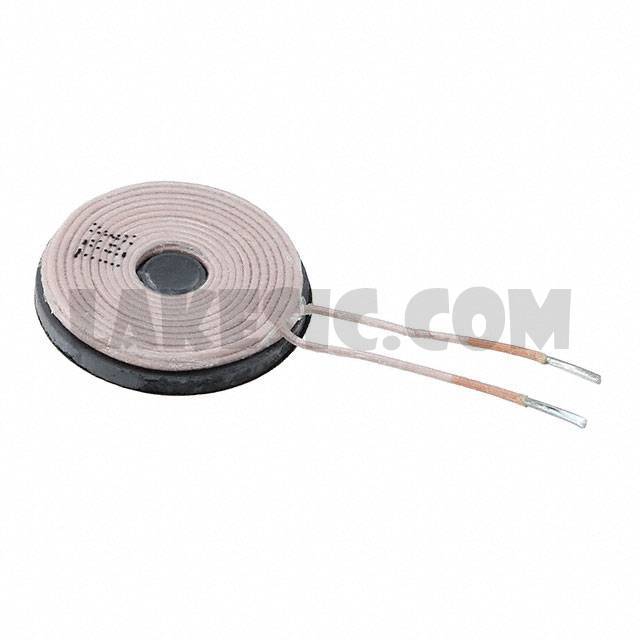

WT151512-22F2-ID


WT151512-22F2-ID

Part NumberWT151512-22F2-ID

Manufacturer

Description

Datasheet

Package / Case

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

WT151512-22F2-ID - Product Attributes

Categories Inductors, Coils, Chokes / Wireless Charging Coils
Datasheet
Standard Package500
ManufacturerTDK Corporation
SeriesWT
Part StatusActive
FunctionTransmitter
Type1 Coil, 2 Layer
Inductance6.8µH
Tolerance±5%
DC Resistance (DCR)170mOhm
Q @ Freq-
Current Rating (Amps)-
Current - Saturation-
Frequency - Self Resonant-
Operating Temperature-
Size / Dimension0.60" Dia x 0.09" H (15.3mm x 2.2mm)
