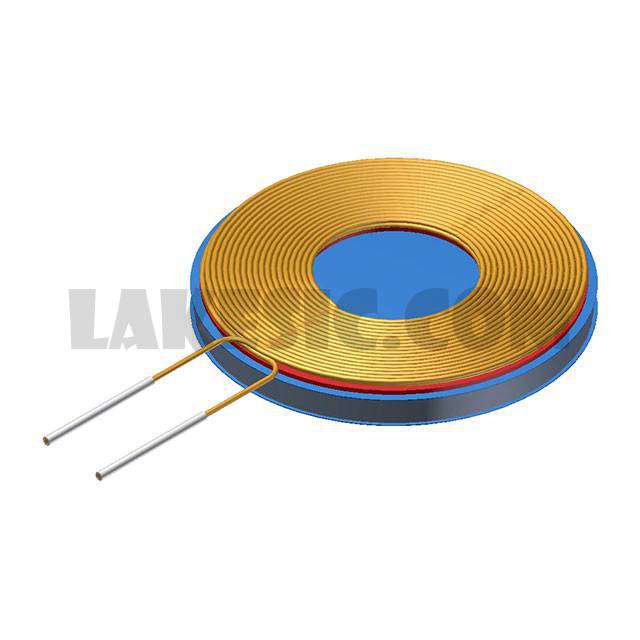

WR111180-36F5-B1


WR111180-36F5-B1

Part NumberWR111180-36F5-B1

Manufacturer

Description

Datasheet

Package / Case

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

WR111180-36F5-B1 - Product Attributes

Categories Inductors, Coils, Chokes / Wireless Charging Coils
Datasheet
Standard Package1000
ManufacturerTDK Corporation
SeriesWR
Part StatusActive
FunctionReceiver
Type1 Coil, 2 Layer
Inductance16.6µH
Tolerance-
DC Resistance (DCR)1Ohm
Q @ Freq-
Current Rating (Amps)-
Current - Saturation-
Frequency - Self Resonant-
Operating Temperature-
Size / Dimension0.43" Dia x 0.06" H (11.0mm x 1.5mm)
