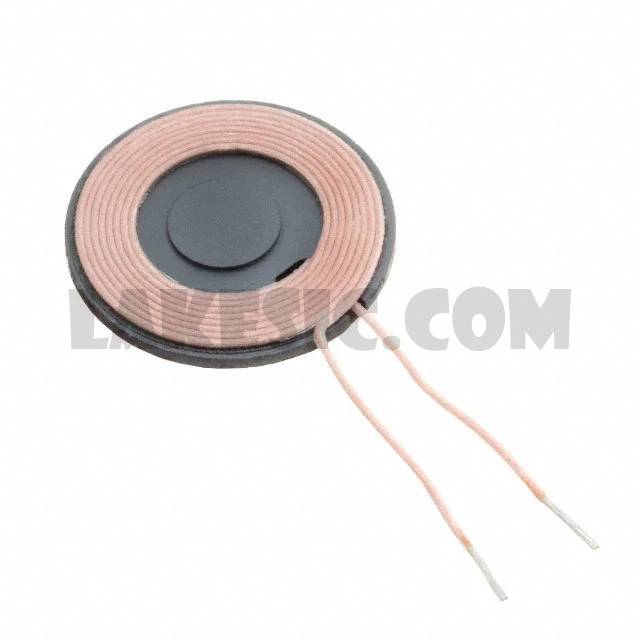

WT252512-8F2-SM


WT252512-8F2-SM

Part NumberWT252512-8F2-SM

Manufacturer

Description

Datasheet

Package / Case

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

WT252512-8F2-SM - Product Attributes

Categories Inductors, Coils, Chokes / Wireless Charging Coils
Datasheet
Standard Package336
ManufacturerTDK Corporation
SeriesWT
Part StatusActive
FunctionTransmitter
Type1 Coil, 1 Layer
Inductance2.76µH
Tolerance±5%
DC Resistance (DCR)70mOhm
Q @ Freq-
Current Rating (Amps)-
Current - Saturation-
Frequency - Self Resonant-
Operating Temperature-
Size / Dimension0.98" Dia x 0.08" H (25.0mm x 2.1mm)
