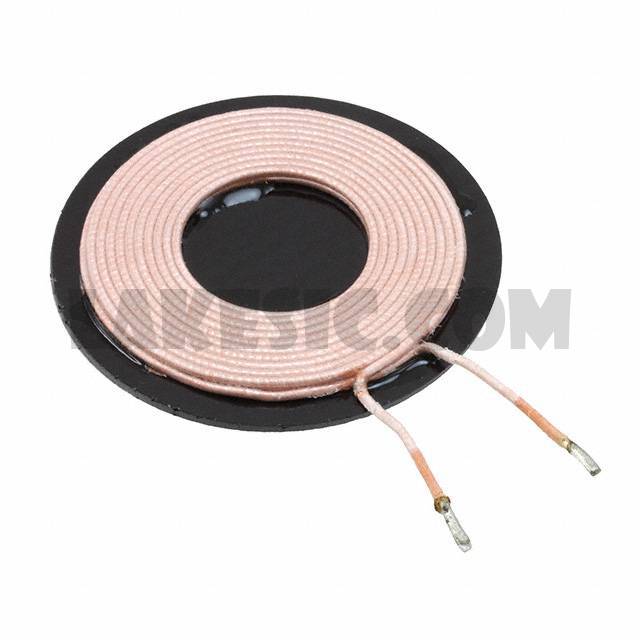

WT505090-20K2-A10-G


WT505090-20K2-A10-G

Part NumberWT505090-20K2-A10-G

Manufacturer

Description

Datasheet

Package / Case

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

WT505090-20K2-A10-G - Product Attributes

Categories Inductors, Coils, Chokes / Wireless Charging Coils
Datasheet
Standard Package130
ManufacturerTDK Corporation
SeriesWT
Part StatusActive
FunctionTransmitter
Type1 Coil, 2 Layer
Inductance24µH
Tolerance-
DC Resistance (DCR)100mOhm
Q @ Freq-
Current Rating (Amps)-
Current - Saturation-
Frequency - Self Resonant-
Operating Temperature-
Size / Dimension1.97" Dia x 0.15" H (50.0mm x 3.8mm)
