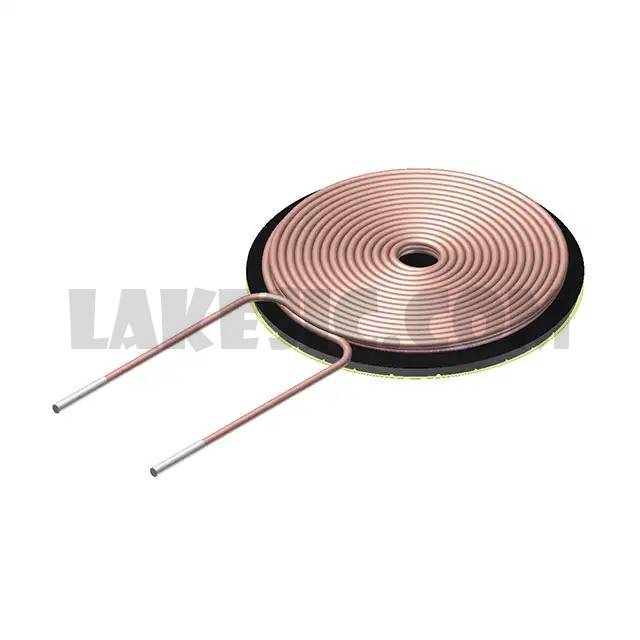

WT242490-30F2-G


WT242490-30F2-G

Part NumberWT242490-30F2-G

Manufacturer

Description

Datasheet

Package / Case

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

WT242490-30F2-G - Product Attributes

Categories Inductors, Coils, Chokes / Wireless Charging Coils
Datasheet
Standard Package540
ManufacturerTDK Corporation
SeriesWT
Part StatusActive
FunctionTransmitter
Type1 Coil, 2 Layer
Inductance12.9µH
Tolerance±10%
DC Resistance (DCR)165mOhm
Q @ Freq-
Current Rating (Amps)-
Current - Saturation-
Frequency - Self Resonant-
Operating Temperature-
Size / Dimension0.97" Dia x 0.09" H (24.5mm x 2.4mm)
