Categories	Inductors, Coils, Chokes / Wireless Charging Coils
Datasheet	WT505090-10F2-A11-G1 Spec
Standard Package	60
Manufacturer	TDK Corporation
Series	WT
Part Status	Active
Function	Transmitter
Type	1 Coil, 1 Layer
Inductance	6.3µH
DC Resistance (DCR)	60mOhm
Size / Dimension	2.02" Dia x 0.13" H (51.4mm x 3.4mm)

WR202020-18M8-G	TDK Corporation, 1 Coil, 1 Layer 9.9µH Wireless Charging Coil Receiver 520mOhm, WR	View
WR301025-19M8-G	TDK Corporation, 1 Coil, 2 Layer 12.8µH Wireless Charging Coil Receiver 1.27Ohm Max, WR	View
WT303012-12F2-ID	TDK Corporation, 1 Coil, 2 Layer 6.3µH Wireless Charging Coil Transmitter 90mOhm, WT	View
WR151580-48F2-G	TDK Corporation, 1 Coil, 4 Layer 27.1µH Wireless Charging Coil Receiver 500mOhm, WR	View
WT242490-30F2-G	TDK Corporation, 1 Coil, 2 Layer 12.9µH Wireless Charging Coil Transmitter 165mOhm, WT	View
WR202010-18M8-SM	TDK Corporation, 1 Coil, 2 Layer 10.68µH Wireless Charging Coil Receiver 350mOhm, WR	View
WR555540-16K2-FS2	TDK Corporation, 1 Coil, 2 Layer 15.8µH Wireless Charging Coil Receiver 100mOhm, WR	View
WR424245-13K2-G	TDK Corporation, 1 Coil, 1 Layer 11.9µH Wireless Charging Coil Receiver 220mOhm, WR	View
WT282890-16F2-G	TDK Corporation, 1 Coil, 2 Layer 7.4µH Wireless Charging Coil Transmitter 110mOhm, WT	View
WR222230-26M8-G	TDK Corporation, 1 Coil, 2 Layer 27µH Wireless Charging Coil Receiver 1.1Ohm Max, WR	View
WR483245-15F5-G	TDK Corporation, 1 Coil, 1 Layer 13µH Wireless Charging Coil Receiver 200mOhm, WR	View
WT202080-28F2-G	TDK Corporation, 1 Coil, 4 Layer 20.9µH Wireless Charging Coil Transmitter 300mOhm, WT	View

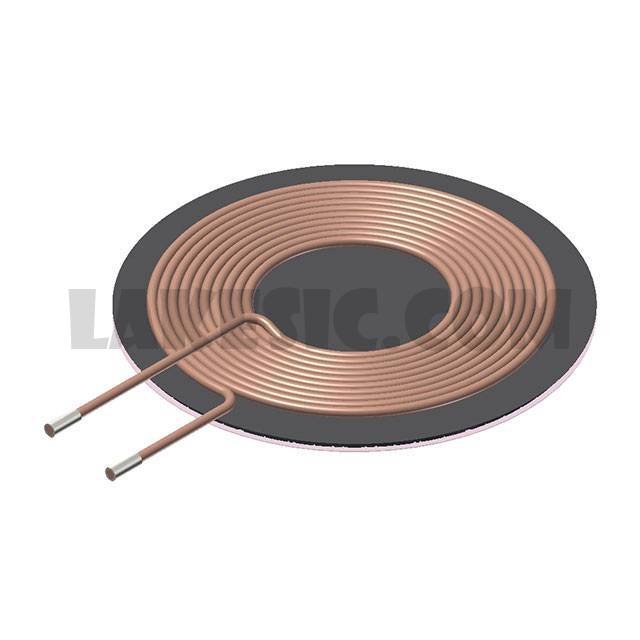

WT505090-10F2-A11-G1

Part NumberWT505090-10F2-A11-G1
