Categories	Inductors, Coils, Chokes / Wireless Charging Coils
Datasheet	WT202030-16M8-G Spec
Standard Package	560
Manufacturer	TDK Corporation
Series	WT
Part Status	Active
Function	Transmitter
Type	1 Coil, 1 Layer
Inductance	6.2µH
Tolerance	-
DC Resistance (DCR)	190mOhm
Q @ Freq	-
Current Rating (Amps)	-
Current - Saturation	-
Frequency - Self Resonant	-
Operating Temperature	-

WT-505060-20K2-A10-G	TDK Corporation, 1 Coil, 2 Layer 24µH Wireless Charging Coil Transmitter 100mOhm Max, WT	View
WR303050-12F5-ID	TDK Corporation, 1 Coil, 1 Layer 8.23µH Wireless Charging Coil Receiver 260mOhm, WR	View
WR524825-17M6-NF-G	TDK Corporation, 1 Coil, 1 Layer 16.8µH Wireless Charging Coil Receiver 750mOhm, WR	View
WR282840-37K2-LR3	TDK Corporation, 1 Coil, 1 Layer 46µH Wireless Charging Coil Receiver 1.25Ohm, WR	View
WT-505060-8K2-LT	TDK Corporation, 1 Coil, 1 Layer 4.95µH Wireless Charging Coil Transmitter 30mOhm, WT	View
WT303012-12F2-ID	TDK Corporation, 1 Coil, 2 Layer 6.3µH Wireless Charging Coil Transmitter 90mOhm, WT	View
WR221230-36M8-G	TDK Corporation, 1 Coil, 2 Layer 27.9µH Wireless Charging Coil Receiver 1.21Ohm Max, WR	View
WR524830-16F3-NF-G	TDK Corporation, 1 Coil, 1 Layer 19.5µH Wireless Charging Coil Receiver 800mOhm, WR	View
WT202080-28F2-G	TDK Corporation, 1 Coil, 4 Layer 20.9µH Wireless Charging Coil Transmitter 300mOhm, WT	View
WR202010-18M8-SM	TDK Corporation, 1 Coil, 2 Layer 10.68µH Wireless Charging Coil Receiver 350mOhm, WR	View
WR222230-26M8-G	TDK Corporation, 1 Coil, 2 Layer 27µH Wireless Charging Coil Receiver 1.1Ohm Max, WR	View
WT1005690-12K2-A6-G	TDK Corporation, 3 Coil, 1 Layer 11.5 ~ 12.5µH Wireless Charging Coil Transmitter 80mOhm, WT	View

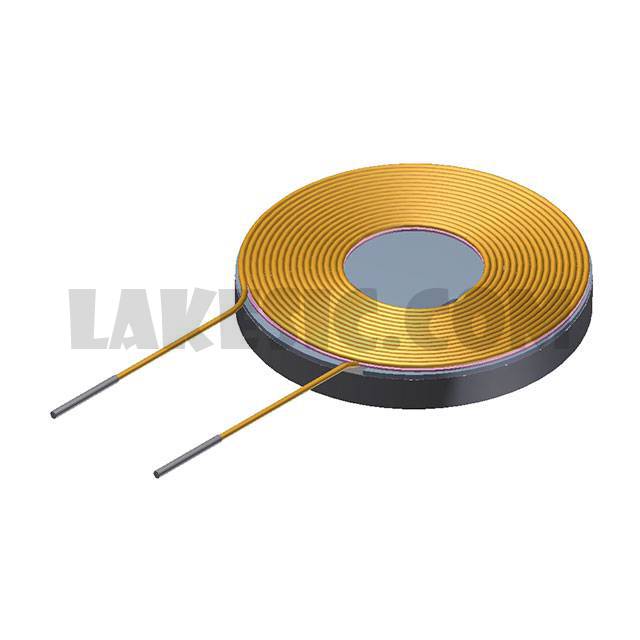

WT202030-16M8-G
