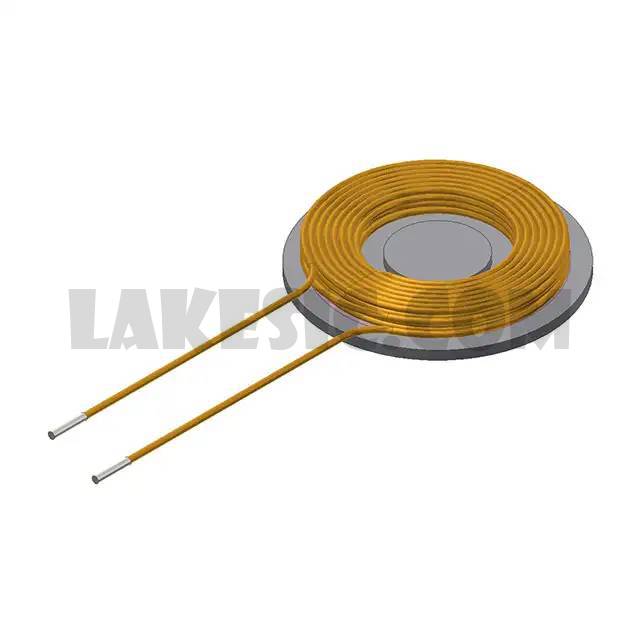

WT202080-28F2-G


WT202080-28F2-G

Part NumberWT202080-28F2-G

Manufacturer

Description

Datasheet

Package / Case

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

WT202080-28F2-G - Product Attributes

Categories Inductors, Coils, Chokes / Wireless Charging Coils
Datasheet
Standard Package540
ManufacturerTDK Corporation
SeriesWT
Part StatusActive
FunctionTransmitter
Type1 Coil, 4 Layer
Inductance20.9µH
Tolerance-
DC Resistance (DCR)300mOhm
Q @ Freq-
Current Rating (Amps)-
Current - Saturation-
Frequency - Self Resonant-
Operating Temperature-
Size / Dimension0.79" Dia x 0.11" H (20.0mm x 2.7mm)
