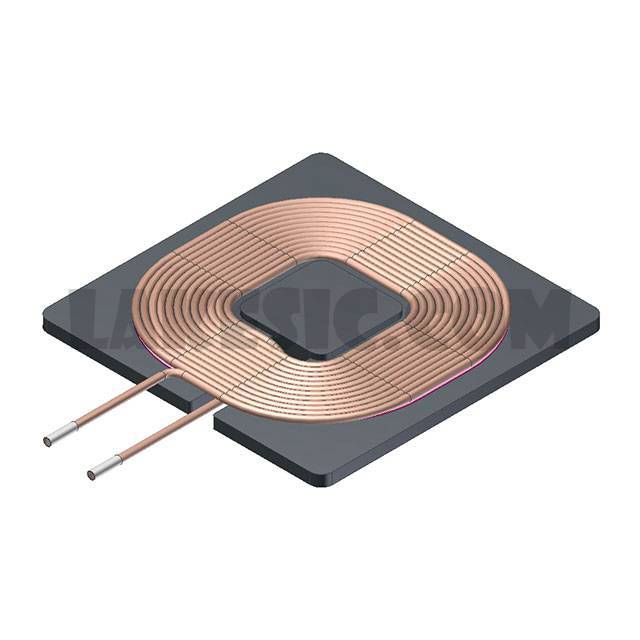

WT525225-12F2-MA2-G


WT525225-12F2-MA2-G

Part NumberWT525225-12F2-MA2-G

Manufacturer

Description

Datasheet

Package / Case

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

WT525225-12F2-MA2-G - Product Attributes

Categories Inductors, Coils, Chokes / Wireless Charging Coils
Datasheet
Standard Package288
ManufacturerTDK Corporation
SeriesWT
Part StatusActive
FunctionTransmitter
Type1 Coil, 1 Layer
Inductance10.5µH
Tolerance-
DC Resistance (DCR)60mOhm
Q @ Freq-
Current Rating (Amps)-
Current - Saturation-
Frequency - Self Resonant-
Operating Temperature-
Size / Dimension2.05" L x 2.05" W x 0.15" H (52.0mm x 52.0mm x 3.7mm)
