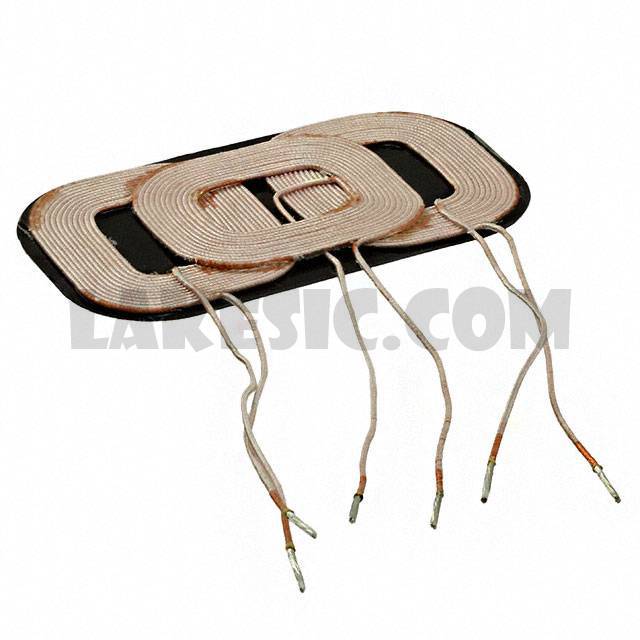

WT1005690-12K2-A6-G


WT1005690-12K2-A6-G

Part NumberWT1005690-12K2-A6-G

Manufacturer

Description

Datasheet

Package / Case

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

WT1005690-12K2-A6-G - Product Attributes

Categories Inductors, Coils, Chokes / Wireless Charging Coils
Datasheet
Standard Package36
ManufacturerTDK Corporation
SeriesWT
Part StatusActive
FunctionTransmitter
Type3 Coil, 1 Layer
Inductance11.5 ~ 12.5µH
Tolerance-
DC Resistance (DCR)80mOhm
Q @ Freq-
Current Rating (Amps)-
Current - Saturation-
Frequency - Self Resonant-
Operating Temperature-
Size / Dimension3.94" L x 2.20" W x 0.19" H (100.0mm x 56mm x 4.8mm)
