Categories	Inductors, Coils, Chokes / Wireless Charging Coils
Datasheet	WR202010-18M8-SM Spec
Standard Package	675
Manufacturer	TDK Corporation
Series	WR
Part Status	Active
Function	Receiver
Type	1 Coil, 2 Layer
Inductance	10.68µH
Tolerance	±5%
DC Resistance (DCR)	350mOhm
Q @ Freq	-
Current Rating (Amps)	-
Current - Saturation	-
Frequency - Self Resonant	-
Operating Temperature	-
Size / Dimension	0.79" Dia x 0.03" H (20.0mm x 0.8mm)

WT1005690-12K2-A6-G	TDK Corporation, 3 Coil, 1 Layer 11.5 ~ 12.5µH Wireless Charging Coil Transmitter 80mOhm, WT	View
WR383245-17F5-G	TDK Corporation, 1 Coil, 1 Layer 13.9µH Wireless Charging Coil Receiver 310mOhm, WR	View
WR303050-12F5-ID	TDK Corporation, 1 Coil, 1 Layer 8.23µH Wireless Charging Coil Receiver 260mOhm, WR	View
WR524830-16F3-NF-G	TDK Corporation, 1 Coil, 1 Layer 19.5µH Wireless Charging Coil Receiver 800mOhm, WR	View
WT202080-28F2-G	TDK Corporation, 1 Coil, 4 Layer 20.9µH Wireless Charging Coil Transmitter 300mOhm, WT	View
WT-505060-20K2-A10-G	TDK Corporation, 1 Coil, 2 Layer 24µH Wireless Charging Coil Transmitter 100mOhm Max, WT	View
WR301025-19M8-G	TDK Corporation, 1 Coil, 2 Layer 12.8µH Wireless Charging Coil Receiver 1.27Ohm Max, WR	View
WT505090-20K2-A10-G	TDK Corporation, 1 Coil, 2 Layer 24µH Wireless Charging Coil Transmitter 100mOhm, WT	View
WT252512-8F2-SM	TDK Corporation, 1 Coil, 1 Layer 2.76µH Wireless Charging Coil Transmitter 70mOhm, WT	View
WR303050-15F5-G	TDK Corporation, 1 Coil, 2 Layer 12.3µH Wireless Charging Coil Receiver 410mOhm, WR	View
WT202030-16M8-G	TDK Corporation, 1 Coil, 1 Layer 6.2µH Wireless Charging Coil Transmitter 190mOhm, WT	View
WR221230-36M8-G	TDK Corporation, 1 Coil, 2 Layer 27.9µH Wireless Charging Coil Receiver 1.21Ohm Max, WR	View

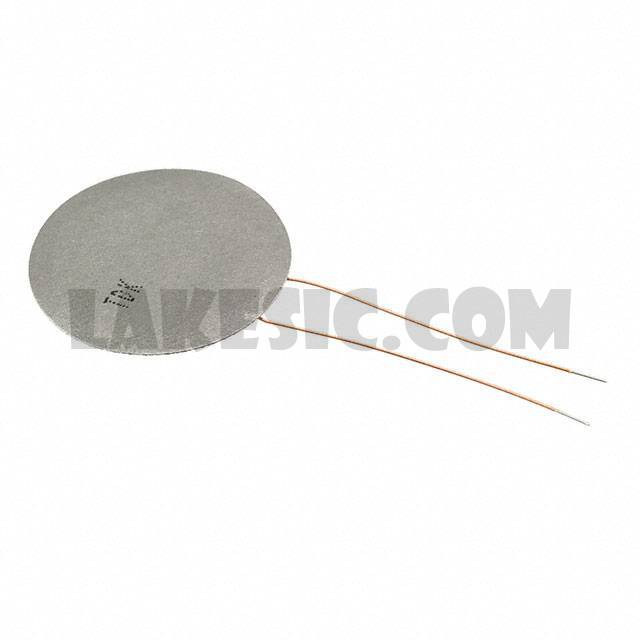

WR202010-18M8-SM

Part NumberWR202010-18M8-SM
