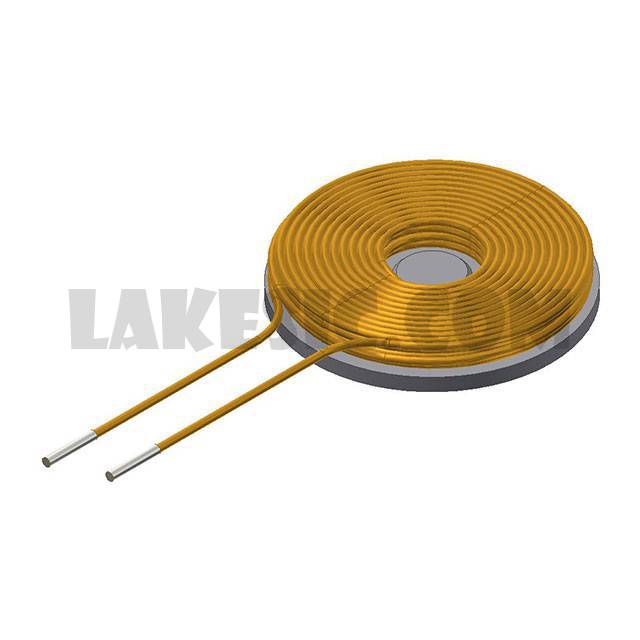

WR151580-48F2-G


WR151580-48F2-G

Part NumberWR151580-48F2-G

Manufacturer

Description

Datasheet

Package / Case

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

WR151580-48F2-G - Product Attributes

Categories Inductors, Coils, Chokes / Wireless Charging Coils
Datasheet
Standard Package900
ManufacturerTDK Corporation
SeriesWR
Part StatusActive
FunctionReceiver
Type1 Coil, 4 Layer
Inductance27.1µH
Tolerance-
DC Resistance (DCR)500mOhm
Q @ Freq-
Current Rating (Amps)-
Current - Saturation-
Frequency - Self Resonant-
Operating Temperature-
Size / Dimension0.59" Dia x 0.10" H (15.0mm x 2.6mm)
