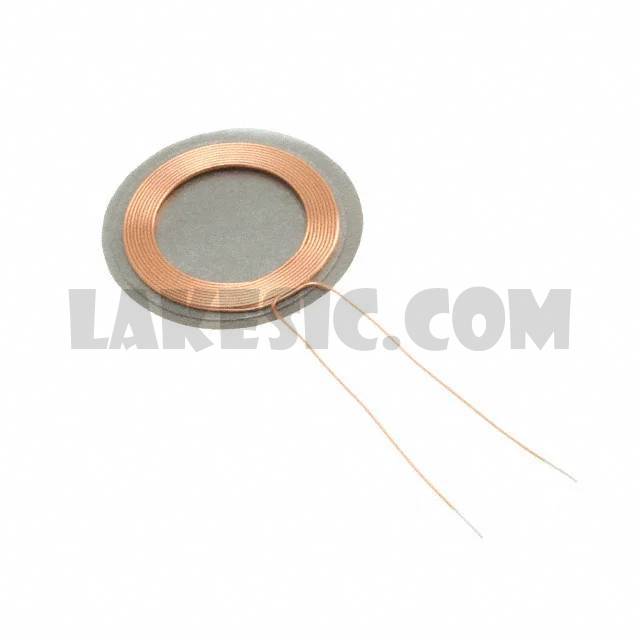

Categories	Inductors, Coils, Chokes / Wireless Charging Coils
Datasheet	WR202010-18M8-ID
Standard Package	675
Manufacturer	TDK Corporation
Series	WR
Part Status	Active
Function	Receiver
Type	1 Coil, 2 Layer
Inductance	11µH
Tolerance	±5%
DC Resistance (DCR)	350mOhm
Q @ Freq	-
Current Rating (Amps)	-
Current - Saturation	-
Frequency - Self Resonant	-
Operating Temperature	-
Size / Dimension	0.79" Dia x 0.03" H (20.0mm x 0.8mm)
