2N7002DW-TP

Part Number2N7002DW-TP

ManufacturerMicro Commercial Co

DescriptionMOSFET 2N-CH 60V 0.115A SOT-363

Datasheet2N7002DW Datasheet

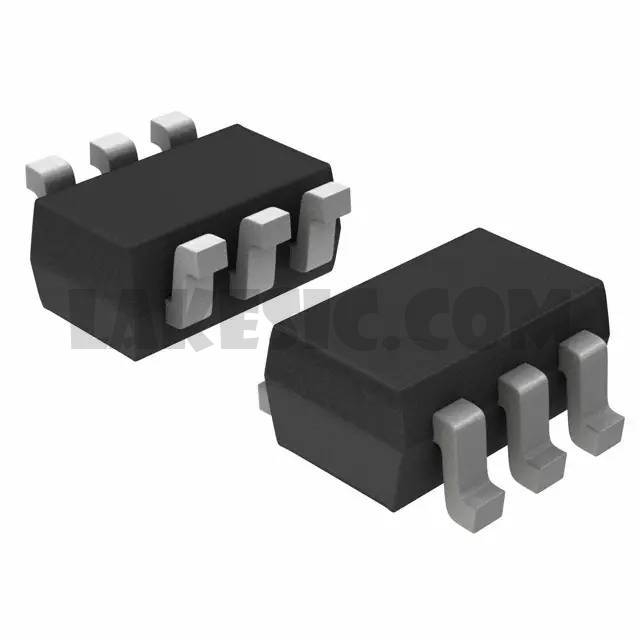

Package / Case6-TSSOP, SC-88, SOT-363

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionMosfet Array 2 N-Channel (Dual) 60V 115mA 200mW Surface Mount SOT-363

To learn about the specification of 2N7002DW-TP, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add 2N7002DW-TP with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of 2N7002DW-TP.
We are offering 2N7002DW-TP for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

2N7002DW-TP - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Arrays
Datasheet	2N7002DW Datasheet
Standard Package	1
Manufacturer	Micro Commercial Co
Series	-
Packaging	Cut Tape (CT)
Part Status	Active
FET Type	2 N-Channel (Dual)
FET Feature	Standard
Drain to Source Voltage (Vdss)	60V
Current - Continuous Drain (Id) @ 25°C	115mA
Rds On (Max) @ Id, Vgs	7.5Ohm @ 50mA, 5V
Vgs(th) (Max) @ Id	2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	-
Input Capacitance (Ciss) (Max) @ Vds	50pF @ 25V
Power - Max	200mW
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	6-TSSOP, SC-88, SOT-363
Supplier Device Package	SOT-363
