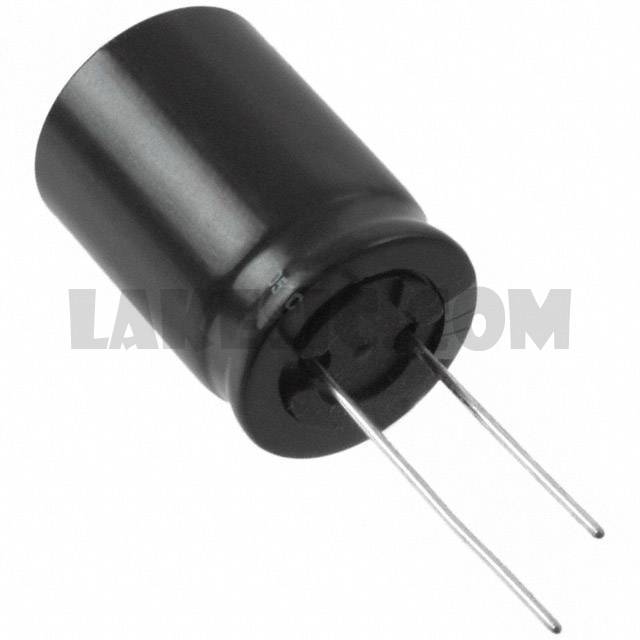

Categories	Capacitors / Aluminum Electrolytic Capacitors
Datasheet	TXW Series
Standard Package	500
Manufacturer	Rubycon
Series	TXW
Packaging	Bulk
Part Status	Active
Capacitance	680µF
Tolerance	±20%
Voltage - Rated	63V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	10000 Hrs @ 105°C
Operating Temperature	-25°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	1.71A @ 120Hz
Ripple Current @ High Frequency	3.12A @ 100kHz
Lead Spacing	0.197" (5.00mm)
Size / Dimension	0.394" Dia (10.00mm)
Height - Seated (Max)	2.067" (52.50mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can

400TXW180MEFC18X45	Rubycon, 180µF 400V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, TXW	View
100TXW100MEFC8X30	Rubycon, 100µF 100V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, TXW	View
160TXW470MEFC18X35	Rubycon, 470µF 160V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, TXW	View
350TXW33MEFC10X25	Rubycon, 33µF 350V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, TXW	View
250TXW180MEFC18X25	Rubycon, 180µF 250V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, TXW	View
160TXW220MEFC12.5X35	Rubycon, 220µF 160V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, TXW	View
420TXW100MEFCCC16X40	Rubycon, 100µF 420V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, TXW	View
160TXW390MEFC16X35	Rubycon, 390µF 160V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, TXW	View
160TXW82MEFC10X25	Rubycon, 82µF 160V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, TXW	View
160TXW56MEFC8X25	Rubycon, 56µF 160V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, TXW	View
160TXW270MEFC12.5X40	Rubycon, 270µF 160V Aluminum Electrolytic Capacitors Radial, Can 12000 Hrs @ 105°C, TXW	View
100TXW270MEFC10X50	Rubycon, 270µF 100V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C, TXW	View

63TXW680MEFC10X50

Part Number63TXW680MEFC10X50
