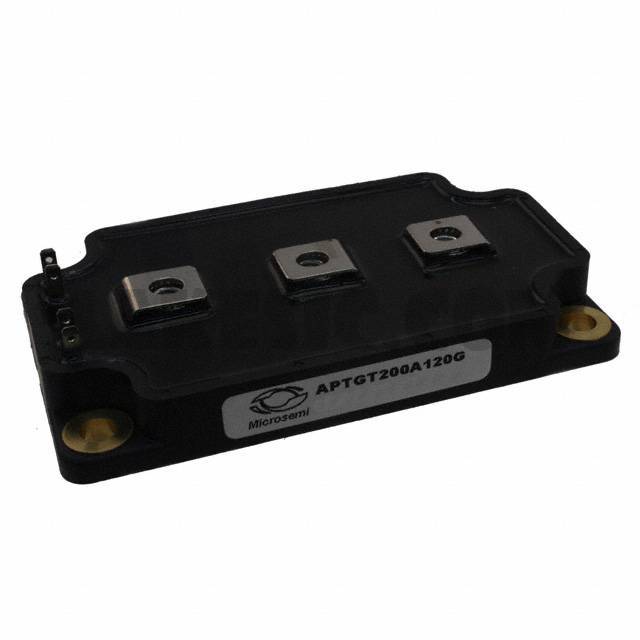

APTGT200A120G

APTGT200A120G

Part NumberAPTGT200A120G

ManufacturerMicrosemi Corporation

DescriptionPOWER MODULE IGBT 1200V 200A SP6

DatasheetAPTGT200A120G

Package / CaseSP6

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionIGBT Module Trench Field Stop Half Bridge 1200V 280A 890W Chassis Mount SP6

To learn about the specification of APTGT200A120G, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add APTGT200A120G with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of APTGT200A120G.
We are offering APTGT200A120G for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

APTGT200A120G - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - IGBTs - Modules
Datasheet	APTGT200A120G
Standard Package	1
Manufacturer	Microsemi Corporation
Series	-
Part Status	Active
IGBT Type	Trench Field Stop
Configuration	Half Bridge
Voltage - Collector Emitter Breakdown (Max)	1200V
Current - Collector (Ic) (Max)	280A
Power - Max	890W
Vce(on) (Max) @ Vge, Ic	2.1V @ 15V, 200A
Current - Collector Cutoff (Max)	350µA
Input Capacitance (Cies) @ Vce	14nF @ 25V
Input	Standard
NTC Thermistor	No
Operating Temperature	-40°C ~ 150°C (TJ)
Mounting Type	Chassis Mount
Package / Case	SP6
Supplier Device Package	SP6
