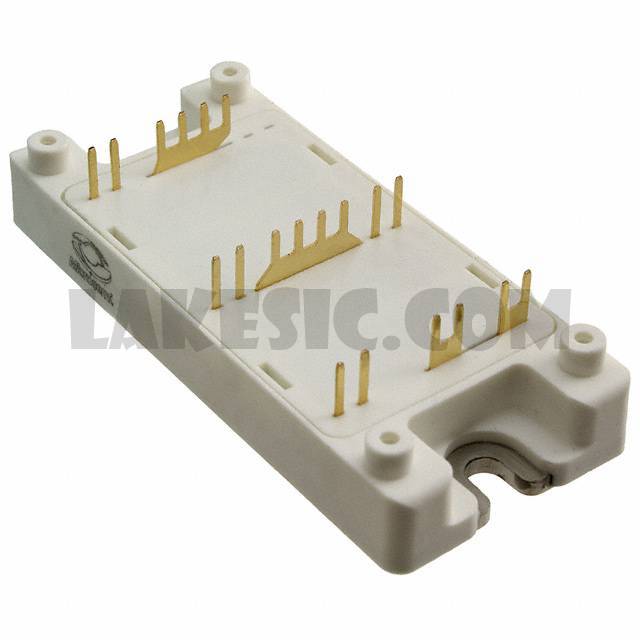

APTGT300A60TG

APTGT300A60TG

Part NumberAPTGT300A60TG

ManufacturerMicrosemi Corporation

DescriptionPOWER MOD IGBT TRENCH PH LEG SP4

DatasheetAPTGT300A60TG

Package / CaseSP4

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionIGBT Module Trench Field Stop Half Bridge 600V 430A 935W Chassis Mount SP4

To learn about the specification of APTGT300A60TG, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add APTGT300A60TG with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of APTGT300A60TG.
We are offering APTGT300A60TG for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

APTGT300A60TG - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - IGBTs - Modules
Datasheet	APTGT300A60TG
Standard Package	1
Manufacturer	Microsemi Corporation
Series	-
Part Status	Active
IGBT Type	Trench Field Stop
Configuration	Half Bridge
Voltage - Collector Emitter Breakdown (Max)	600V
Current - Collector (Ic) (Max)	430A
Power - Max	935W
Vce(on) (Max) @ Vge, Ic	1.9V @ 15V, 300A
Current - Collector Cutoff (Max)	350µA
Input Capacitance (Cies) @ Vce	18.4nF @ 25V
Input	Standard
NTC Thermistor	Yes
Operating Temperature	-40°C ~ 175°C (TJ)
Mounting Type	Chassis Mount
Package / Case	SP4
Supplier Device Package	SP4
