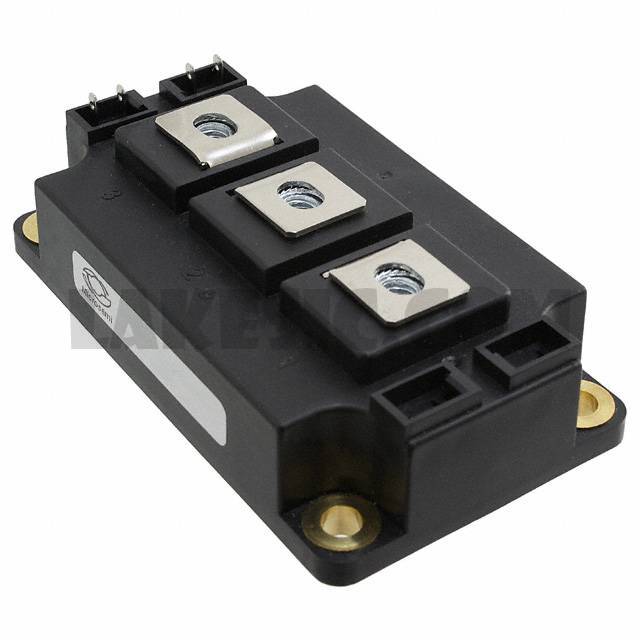

APTGT400A60D3G

APTGT400A60D3G

Part NumberAPTGT400A60D3G

ManufacturerMicrosemi Corporation

DescriptionPOWER MOD IGBT TRENCH PH LEG D3

DatasheetAPTGT400A60D3G

Package / CaseD-3 Module

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionIGBT Module Trench Field Stop Half Bridge 600V 500A 1250W Chassis Mount D3

To learn about the specification of APTGT400A60D3G, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add APTGT400A60D3G with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of APTGT400A60D3G.
We are offering APTGT400A60D3G for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

APTGT400A60D3G - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - IGBTs - Modules
Datasheet	APTGT400A60D3G
Standard Package	1
Manufacturer	Microsemi Corporation
Series	-
Part Status	Active
IGBT Type	Trench Field Stop
Configuration	Half Bridge
Voltage - Collector Emitter Breakdown (Max)	600V
Current - Collector (Ic) (Max)	500A
Power - Max	1250W
Vce(on) (Max) @ Vge, Ic	1.9V @ 15V, 400A
Current - Collector Cutoff (Max)	500µA
Input Capacitance (Cies) @ Vce	24nF @ 25V
Input	Standard
NTC Thermistor	No
Operating Temperature	-40°C ~ 175°C (TJ)
Mounting Type	Chassis Mount
Package / Case	D-3 Module
Supplier Device Package	D3
