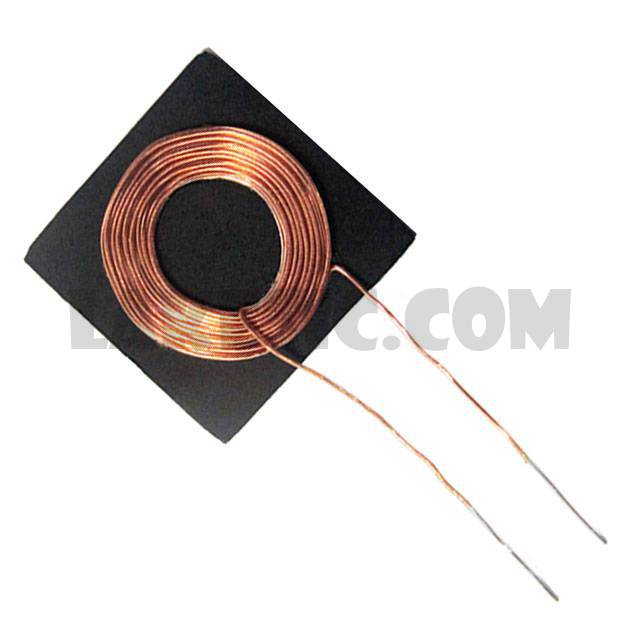

AWCCA-12R12H11-C01-B


AWCCA-12R12H11-C01-B

Part NumberAWCCA-12R12H11-C01-B

Manufacturer

Description

Datasheet

Package / Case

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

AWCCA-12R12H11-C01-B - Product Attributes

Categories Inductors, Coils, Chokes / Wireless Charging Coils
Datasheet
Standard Package100
ManufacturerAbracon LLC
SeriesAWCCA
Part StatusActive
FunctionReceiver
Type1 Coil, 1 Layer
Inductance8µH
Tolerance±10%
DC Resistance (DCR)520mOhm
Q @ Freq10 @ 100kHz
Current Rating (Amps)-
Current - Saturation-
Frequency - Self Resonant-
Operating Temperature-25°C ~ 85°C
Size / Dimension0.47" L x 0.47" W x 0.04" H (12.0mm x 12.0mm x 1.1mm)
