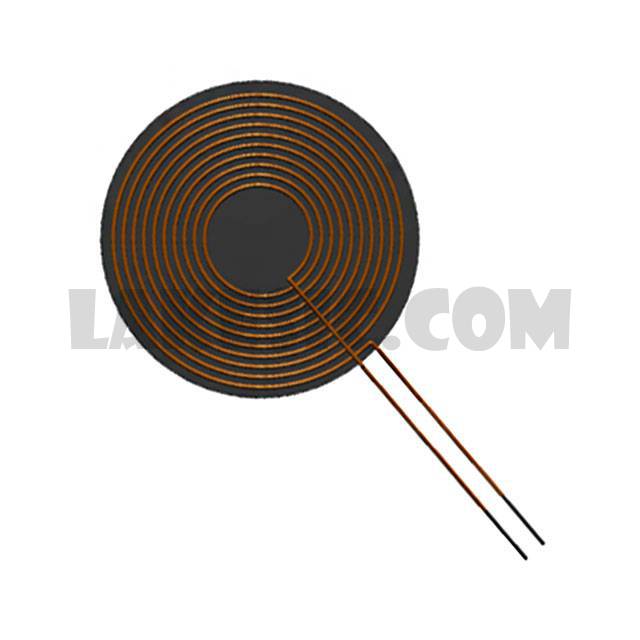

AWCCA-15N15H06-C01-B


AWCCA-15N15H06-C01-B

Part NumberAWCCA-15N15H06-C01-B

Manufacturer

Description

Datasheet

Package / Case

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

AWCCA-15N15H06-C01-B - Product Attributes

Categories Inductors, Coils, Chokes / Wireless Charging Coils
Datasheet
Standard Package144
ManufacturerAbracon LLC
SeriesAWCCA
Part StatusActive
FunctionReceiver, Transmitter
Type1 Coil, 1 Layer
Inductance14.9µH
Tolerance±10%
DC Resistance (DCR)1Ohm
Q @ Freq8.5 @ 100kHz
Current Rating (Amps)-
Current - Saturation-
Frequency - Self Resonant-
Operating Temperature-25°C ~ 85°C
Size / Dimension0.59" Dia x 0.02" H (15.0mm x 0.6mm)
