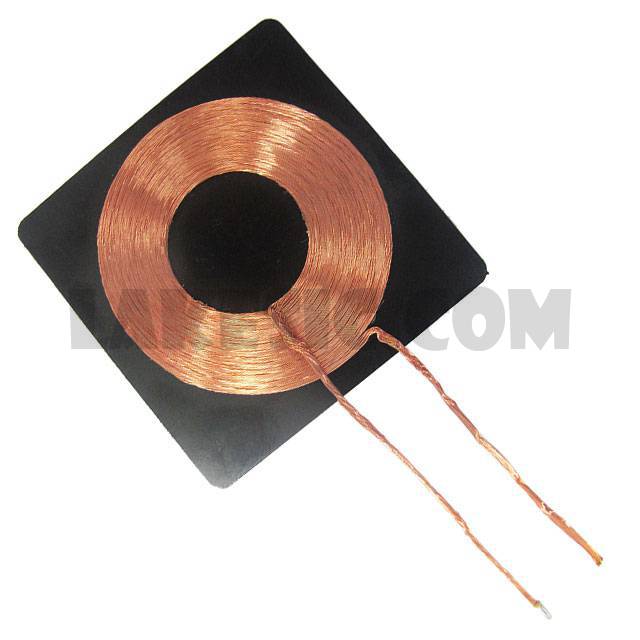

AWCCA-50N50H16-C51-B


AWCCA-50N50H16-C51-B

Part NumberAWCCA-50N50H16-C51-B

Manufacturer

Description

Datasheet

Package / Case

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

AWCCA-50N50H16-C51-B - Product Attributes

Categories Inductors, Coils, Chokes / Wireless Charging Coils
Datasheet
Standard Package100
ManufacturerAbracon LLC
SeriesAWCCA
Part StatusActive
FunctionReceiver, Transmitter
Type1 Coil, 1 Layer
Inductance12.5µH
Tolerance±10%
DC Resistance (DCR)80mOhm
Q @ Freq80 @ 100kHz
Current Rating (Amps)-
Current - Saturation-
Frequency - Self Resonant-
Operating Temperature-25°C ~ 85°C
Size / Dimension1.97" L x 1.97" W x 0.06" H (50.0mm x 50.0mm x 1.6mm)
