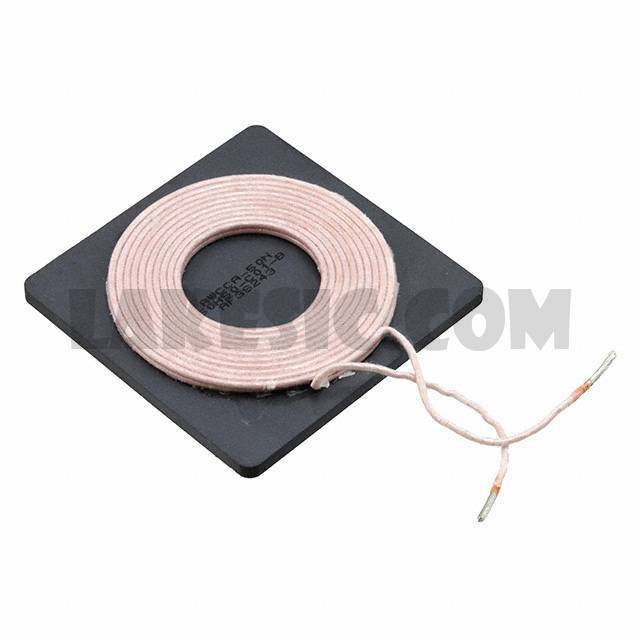

AWCCA-50N50H50-C01-B


AWCCA-50N50H50-C01-B

Part NumberAWCCA-50N50H50-C01-B

Manufacturer

Description

Datasheet

Package / Case

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

AWCCA-50N50H50-C01-B - Product Attributes

Categories Inductors, Coils, Chokes / Wireless Charging Coils
Datasheet
Standard Package100
ManufacturerAbracon LLC
SeriesAWCCA-50N50
Part StatusActive
FunctionReceiver, Transmitter
Type1 Coil, 1 Layer
Inductance24µH
Tolerance±10%
DC Resistance (DCR)72mOhm
Q @ Freq163 @ 100kHz
Current Rating (Amps)5.7A
Current - Saturation30A
Frequency - Self Resonant2.8MHz
Operating Temperature-25°C ~ 85°C
Size / Dimension1.96" L x 1.96" W x 0.19" H (50.0mm x 50.0mm x 5.0mm)
