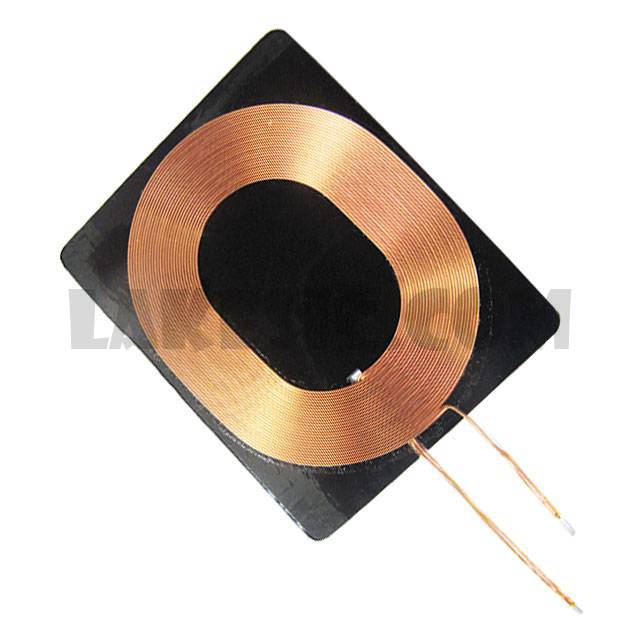

AWCCA-47R38H08-C01-B


AWCCA-47R38H08-C01-B

Part NumberAWCCA-47R38H08-C01-B

Manufacturer

Description

Datasheet

Package / Case

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

AWCCA-47R38H08-C01-B - Product Attributes

Categories Inductors, Coils, Chokes / Wireless Charging Coils
Datasheet
Standard Package100
ManufacturerAbracon LLC
SeriesAWCCA
Part StatusActive
FunctionReceiver
Type1 Coil, 1 Layer
Inductance11.5µH
Tolerance±5%
DC Resistance (DCR)160mOhm
Q @ Freq34 @ 100kHz
Current Rating (Amps)-
Current - Saturation-
Frequency - Self Resonant-
Operating Temperature-25°C ~ 85°C
Size / Dimension1.85" L x 1.50" W x 0.03" H (47.0mm x 38.0mm x 0.9mm)
