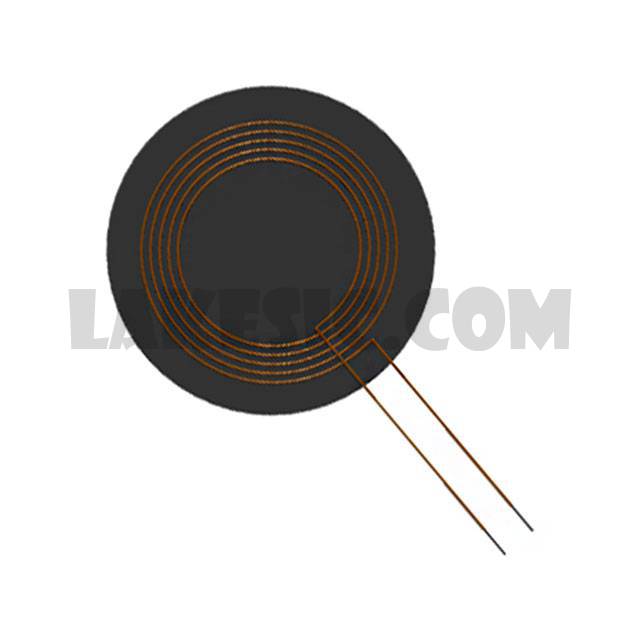

AWCCA-30R30H05-C01-B


AWCCA-30R30H05-C01-B

Part NumberAWCCA-30R30H05-C01-B

Manufacturer

Description

Datasheet

Package / Case

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

AWCCA-30R30H05-C01-B - Product Attributes

Categories Inductors, Coils, Chokes / Wireless Charging Coils
Datasheet
Standard Package100
ManufacturerAbracon LLC
SeriesAWCCA
Part StatusActive
FunctionReceiver
Type1 Coil, 1 Layer
Inductance29.5µH
Tolerance±10%
DC Resistance (DCR)1.8mOhm
Q @ Freq10.4 @ 100kHz
Current Rating (Amps)-
Current - Saturation-
Frequency - Self Resonant-
Operating Temperature-25°C ~ 85°C
Size / Dimension1.18" Dia x 0.02" H (30.0mm x 0.5mm)

AWCCA-30R30H05-C01-B - Related Products

More >>
AWCCA-12R12H11-C01-B Abracon LLC, 1 Coil, 1 Layer 8µH Wireless Charging Coil Receiver 520mOhm, AWCCA View
AWCCA-50N50H40-C01-B Abracon LLC, 1 Coil, 1 Layer 24µH Wireless Charging Coil Receiver, Transmitter 72mOhm, AWCCA-50N50 View
AWCCA-30N30H20-C01-B Abracon LLC, 1 Coil, 1 Layer 6.3µH Wireless Charging Coil Receiver, Transmitter 140mOhm, AWCCA View
AWCCA-50N50H30-C21-B Abracon LLC, 1 Coil, 1 Layer 6.3µH Wireless Charging Coil Receiver, Transmitter 38mOhm, AWCCA View
AWCCA-50N50H35-C02-B Abracon LLC, 1 Coil, 1 Layer 6.3µH Wireless Charging Coil Receiver, Transmitter 19mOhm, AWCCA-50N50 View
AWCCA-53N53H50-C02-B Abracon LLC, 1 Coil, 1 Layer 6.3µH Wireless Charging Coil Receiver, Transmitter 19mOhm, AWCCA-53N53 View
AWCCA-50N50H16-C51-B Abracon LLC, 1 Coil, 1 Layer 12.5µH Wireless Charging Coil Receiver, Transmitter 80mOhm, AWCCA View
AWCCA-50N50H35-C01-B Abracon LLC, 1 Coil, 1 Layer 24µH Wireless Charging Coil Receiver, Transmitter 72mOhm, AWCCA-50N50 View
AWCCA-30R30H05-C01-B Abracon LLC, 1 Coil, 1 Layer 29.5µH Wireless Charging Coil Receiver 1.8mOhm, AWCCA View
AWCCA-47R38H08-C01-B Abracon LLC, 1 Coil, 1 Layer 11.5µH Wireless Charging Coil Receiver 160mOhm, AWCCA View
AWCCA-20N20H20-C01-B Abracon LLC, 1 Coil, 1 Layer 6.3µH Wireless Charging Coil Receiver, Transmitter 150mOhm, AWCCA View
AWCCA-98T56H38-C01-B Abracon LLC, 3 Coil, 1 Layer 12.0µH, 11.5µH, 12.0µH Wireless Charging Coil Transmitter 56mOhm, AWCCA View
