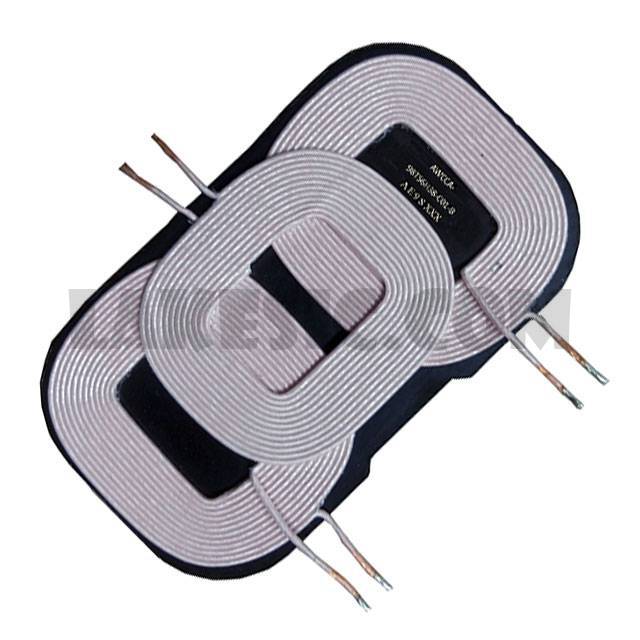

AWCCA-98T56H38-C01-B


AWCCA-98T56H38-C01-B

Part NumberAWCCA-98T56H38-C01-B

Manufacturer

Description

Datasheet

Package / Case

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

AWCCA-98T56H38-C01-B - Product Attributes

Categories Inductors, Coils, Chokes / Wireless Charging Coils
Datasheet
Standard Package100
ManufacturerAbracon LLC
SeriesAWCCA
Part StatusActive
FunctionTransmitter
Type3 Coil, 1 Layer
Inductance12.0µH, 11.5µH, 12.0µH
Tolerance±10%
DC Resistance (DCR)56mOhm
Q @ Freq120,110 @ 100kHZ
Current Rating (Amps)-
Current - Saturation-
Frequency - Self Resonant-
Operating Temperature-25°C ~ 85°C
Size / Dimension3.86" L x 2.20" W x 0.15" H (98.0mm x 56.0mm x 3.8mm)
