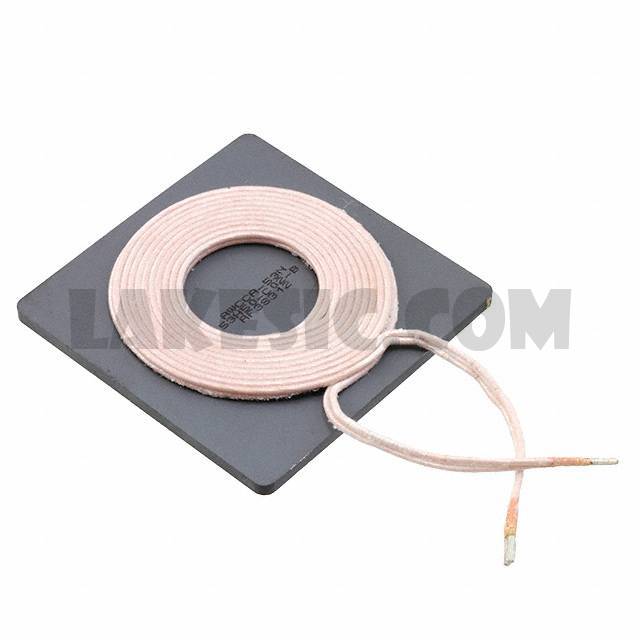

AWCCA-53N53H50-C02-B


AWCCA-53N53H50-C02-B

Part NumberAWCCA-53N53H50-C02-B

Manufacturer

Description

Datasheet

Package / Case

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

AWCCA-53N53H50-C02-B - Product Attributes

Categories Inductors, Coils, Chokes / Wireless Charging Coils
Datasheet
Standard Package100
ManufacturerAbracon LLC
SeriesAWCCA-53N53
Part StatusActive
FunctionReceiver, Transmitter
Type1 Coil, 1 Layer
Inductance6.3µH
Tolerance±10%
DC Resistance (DCR)19mOhm
Q @ Freq66 @ 100kHz
Current Rating (Amps)11A
Current - Saturation40A
Frequency - Self Resonant6.4MHz
Operating Temperature-25°C ~ 85°C
Size / Dimension2.08" L x 2.08" W x 0.19" H (53.0mm x 53.0mm x 5.0mm)
