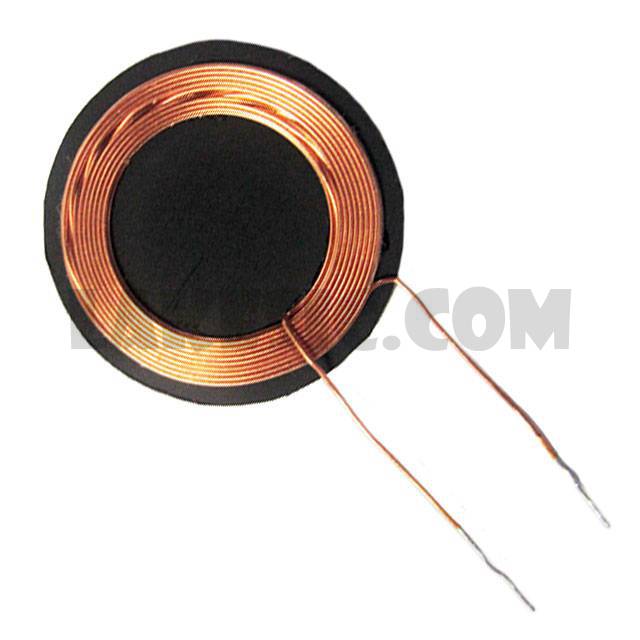

AWCCA-18R18H10-C01-B


AWCCA-18R18H10-C01-B

Part NumberAWCCA-18R18H10-C01-B

Manufacturer

Description

Datasheet

Package / Case

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

AWCCA-18R18H10-C01-B - Product Attributes

Categories Inductors, Coils, Chokes / Wireless Charging Coils
Datasheet
Standard Package100
ManufacturerAbracon LLC
SeriesAWCCA
Part StatusActive
FunctionReceiver
Type1 Coil, 1 Layer
Inductance10.5µH
Tolerance±10%
DC Resistance (DCR)330mOhm
Q @ Freq17 @ 100kHz
Current Rating (Amps)-
Current - Saturation-
Frequency - Self Resonant-
Operating Temperature-25°C ~ 85°C
Size / Dimension0.72" Dia x 0.04" H (18.3mm x 1.0mm)
