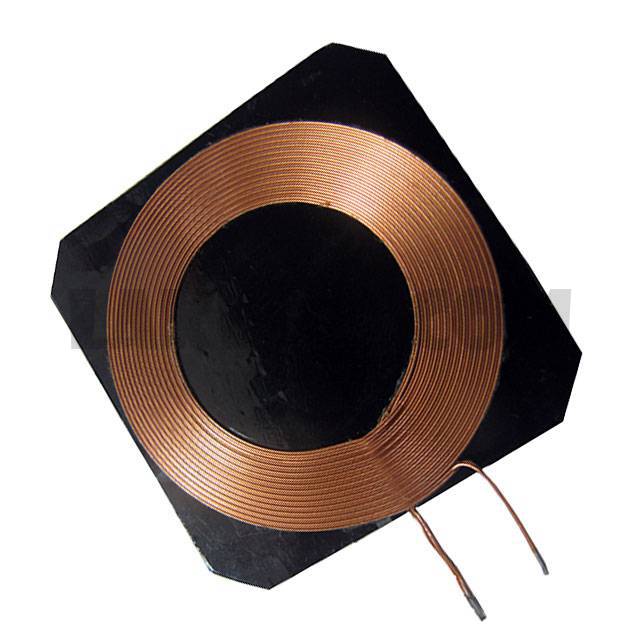

AWCCA-36R36H08-C51-B


AWCCA-36R36H08-C51-B

Part NumberAWCCA-36R36H08-C51-B

Manufacturer

Description

Datasheet

Package / Case

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

AWCCA-36R36H08-C51-B - Product Attributes

Categories Inductors, Coils, Chokes / Wireless Charging Coils
Datasheet
Standard Package100
ManufacturerAbracon LLC
SeriesAWCCA
Part StatusActive
FunctionReceiver
Type1 Coil, 1 Layer
Inductance12µH
Tolerance±10%
DC Resistance (DCR)350mOhm
Q @ Freq27 @ 100kHz
Current Rating (Amps)-
Current - Saturation-
Frequency - Self Resonant-
Operating Temperature-25°C ~ 85°C
Size / Dimension1.42" L x 1.42" W x 0.03" H (36.0mm x 36.0mm x 0.8mm)
