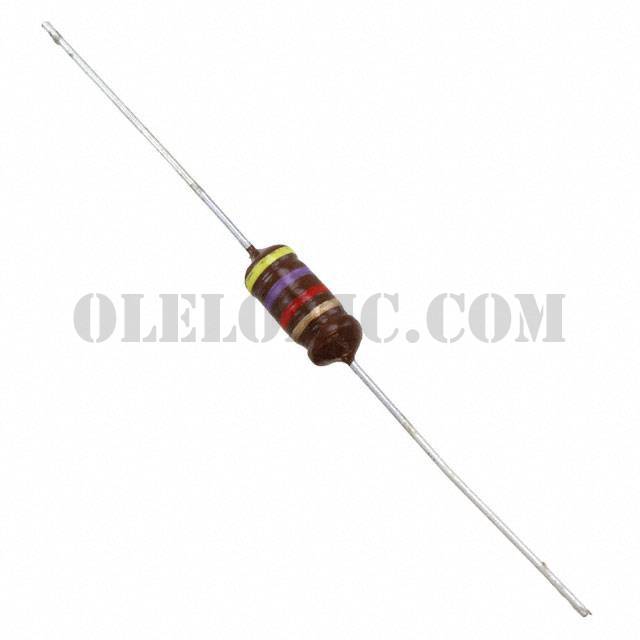

B82144A2475J000


B82144A2475J000

Part NumberB82144A2475J000

Manufacturer

Description

Datasheet

Package / CaseAxial

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed Description

B82144A2475J000 - Product Attributes

Categories Inductors, Coils, Chokes / Fixed Inductors
Datasheet
Standard Package1500
ManufacturerEPCOS (TDK)
SeriesLBC
PackagingTape & Reel (TR)
Part StatusActive
TypeWirewound
Material - CoreFerrite
Inductance4.7mH
Tolerance±5%
Current Rating (Amps)90mA
Current - Saturation-
ShieldingUnshielded
DC Resistance (DCR)20Ohm Max
Q @ Freq60 @ 252kHz
Frequency - Self Resonant500kHz
Ratings-
Operating Temperature-55°C ~ 125°C
Inductance Frequency - Test100kHz
Mounting TypeThrough Hole
Package / CaseAxial
Supplier Device Package-
Size / Dimension0.205" Dia x 0.472" L (5.20mm x 12.00mm)
Height - Seated (Max)-
