CSD16340Q3T

CSD16340Q3T

Part NumberCSD16340Q3T

ManufacturerTexas Instruments

DescriptionMOSFET N-CHANNEL 25V 60A 8VSON

DatasheetCSD16340Q3 Datasheet

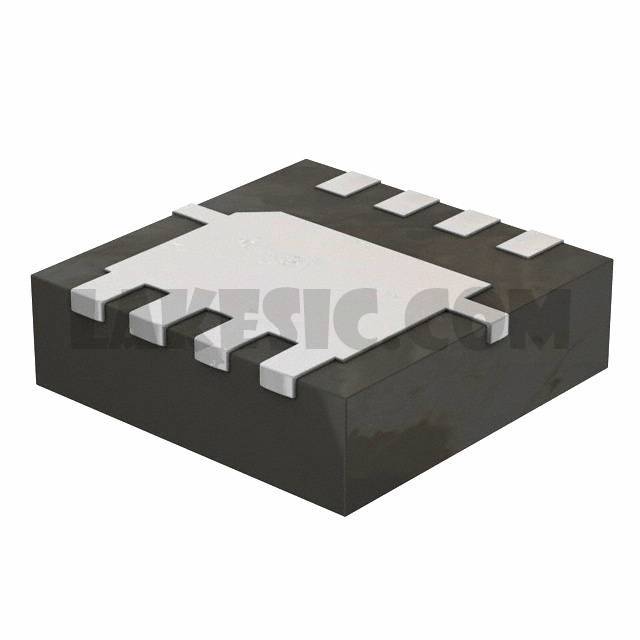

Package / Case8-PowerTDFN

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 25V 60A (Tc) 3W (Ta) Surface Mount 8-VSON-CLIP (3.3x3.3)

To learn about the specification of CSD16340Q3T, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add CSD16340Q3T with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of CSD16340Q3T.
We are offering CSD16340Q3T for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

CSD16340Q3T - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	CSD16340Q3 Datasheet
Standard Package	1
Manufacturer	Texas Instruments
Series	NexFET™
Packaging	Cut Tape (CT)
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	25V
Current - Continuous Drain (Id) @ 25°C	60A (Tc)
Drive Voltage (Max Rds On, Min Rds On)	2.5V, 8V
Rds On (Max) @ Id, Vgs	4.5mOhm @ 20A, 8V
Vgs(th) (Max) @ Id	1.1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	9.2nC @ 4.5V
Vgs (Max)	+10V, -8V
Input Capacitance (Ciss) (Max) @ Vds	1350pF @ 12.5V
FET Feature	-
Power Dissipation (Max)	3W (Ta)
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	8-VSON-CLIP (3.3x3.3)
Package / Case	8-PowerTDFN
