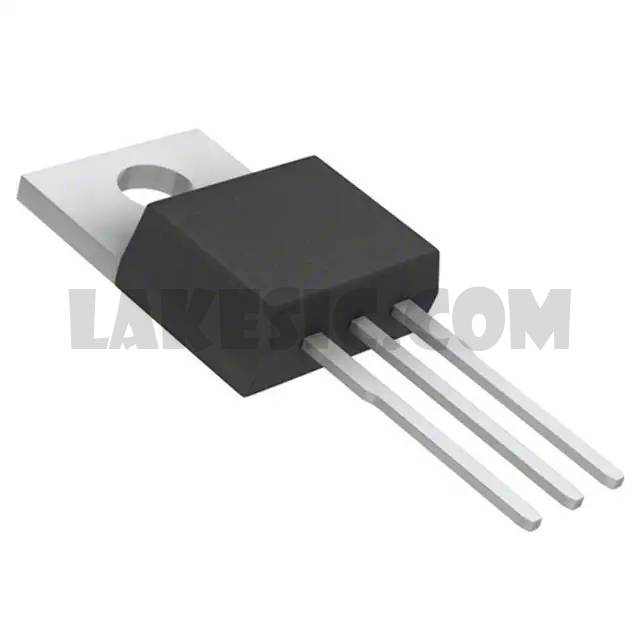

CSD19535KCS

CSD19535KCS

Part NumberCSD19535KCS

ManufacturerTexas Instruments

DescriptionMOSFET N-CH 100V TO-220

DatasheetCSD19535KCS

Package / CaseTO-220-3

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionN-Channel 100V 150A (Ta) 300W (Tc) Through Hole TO-220-3

To learn about the specification of CSD19535KCS, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add CSD19535KCS with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of CSD19535KCS.
We are offering CSD19535KCS for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

CSD19535KCS - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Single
Datasheet	CSD19535KCS
Standard Package	50
Manufacturer	Texas Instruments
Series	NexFET™
Packaging	Tube
Part Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	100V
Current - Continuous Drain (Id) @ 25°C	150A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	6V, 10V
Rds On (Max) @ Id, Vgs	3.6mOhm @ 100A, 10V
Vgs(th) (Max) @ Id	3.4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	101nC @ 10V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	7930pF @ 50V
FET Feature	-
Power Dissipation (Max)	300W (Tc)
Operating Temperature	-55°C ~ 175°C (TJ)
Mounting Type	Through Hole
Supplier Device Package	TO-220-3
Package / Case	TO-220-3
