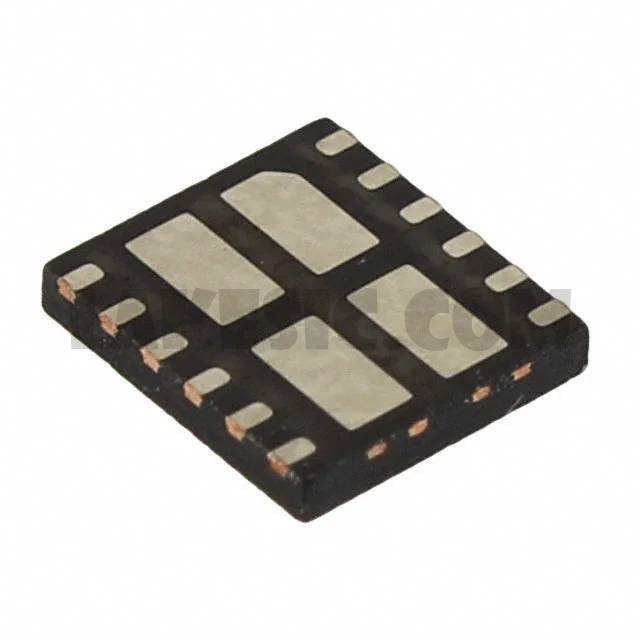

FDMQ8203

FDMQ8203

Part NumberFDMQ8203

ManufacturerON Semiconductor

DescriptionMOSFET 2N/2P-CH 100V/80V 12-MLP

DatasheetFDMQ8203

Package / Case12-WDFN Exposed Pad

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionMosfet Array 2 N and 2 P-Channel (H-Bridge) 100V, 80V 3.4A, 2.6A 2.5W Surface Mount 12-MLP (5x4.5)

To learn about the specification of FDMQ8203, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add FDMQ8203 with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of FDMQ8203.
We are offering FDMQ8203 for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

FDMQ8203 - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - FETs, MOSFETs - Arrays
Datasheet	FDMQ8203
Standard Package	3000
Manufacturer	ON Semiconductor
Series	GreenBridge™ PowerTrench®
Packaging	Tape & Reel (TR)
Part Status	Active
FET Type	2 N and 2 P-Channel (H-Bridge)
FET Feature	Logic Level Gate
Drain to Source Voltage (Vdss)	100V, 80V
Current - Continuous Drain (Id) @ 25°C	3.4A, 2.6A
Rds On (Max) @ Id, Vgs	110mOhm @ 3A, 10V
Vgs(th) (Max) @ Id	4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	5nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds	210pF @ 50V
Power - Max	2.5W
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	12-WDFN Exposed Pad
Supplier Device Package	12-MLP (5x4.5)
Base Part Number	FDMQ8203
