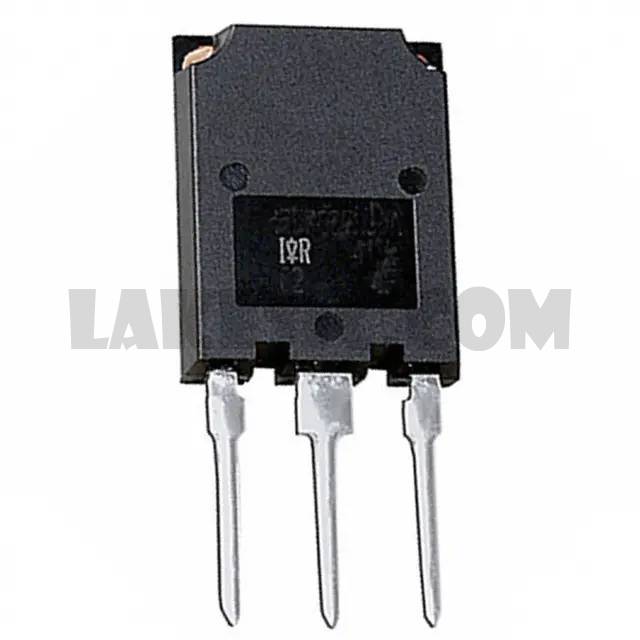

IRG4PSC71KDPBF

IRG4PSC71KDPBF

Part NumberIRG4PSC71KDPBF

ManufacturerInfineon Technologies

DescriptionIGBT 600V 85A 350W SUPER247

DatasheetIRG4PSC71KDPbF

Package / CaseTO-274AA

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionIGBT 600V 85A 350W Through Hole SUPER-247™ (TO-274AA)

To learn about the specification of IRG4PSC71KDPBF, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add IRG4PSC71KDPBF with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of IRG4PSC71KDPBF.
We are offering IRG4PSC71KDPBF for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

IRG4PSC71KDPBF - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - IGBTs - Single
Datasheet	IRG4PSC71KDPbF
Standard Package	25
Manufacturer	Infineon Technologies
Series	-
Packaging	Bulk
Part Status	Not For New Designs
IGBT Type	-
Voltage - Collector Emitter Breakdown (Max)	600V
Current - Collector (Ic) (Max)	85A
Current - Collector Pulsed (Icm)	200A
Vce(on) (Max) @ Vge, Ic	2.3V @ 15V, 60A
Power - Max	350W
Switching Energy	3.95mJ (on), 2.33mJ (off)
Input Type	Standard
Gate Charge	340nC
Td (on/off) @ 25°C	82ns/282ns
Test Condition	480V, 60A, 5Ohm, 15V
Reverse Recovery Time (trr)	82ns
Operating Temperature	-55°C ~ 150°C (TJ)
Mounting Type	Through Hole
Package / Case	TO-274AA
Supplier Device Package	SUPER-247™ (TO-274AA)
