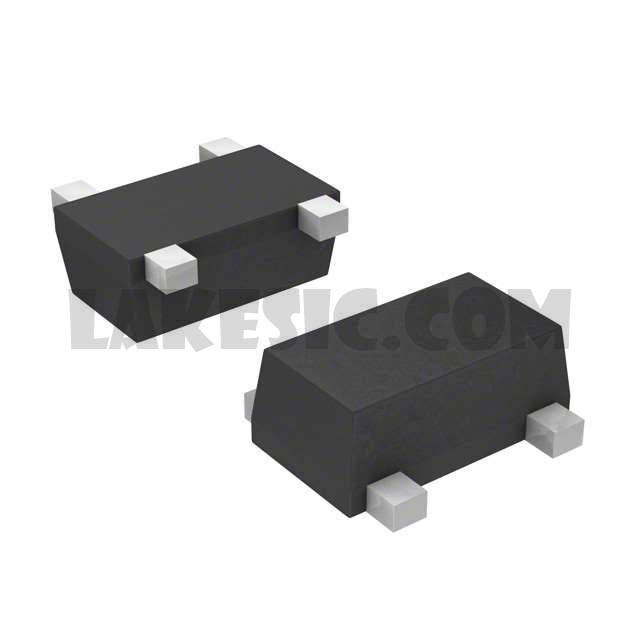

MCH4015-TL-H

MCH4015-TL-H

Part NumberMCH4015-TL-H

ManufacturerON Semiconductor

DescriptionRF TRANS NPN 12V 10GHZ 4MCPH

DatasheetMCH4015

Package / CaseSOT-343F

Unit PriceRequest a Quote

Lead TimeTo be Confirmed

Detailed DescriptionRF Transistor NPN 12V 100mA 10GHz 450mW Surface Mount 4-MCPH

To learn about the specification of MCH4015-TL-H, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add MCH4015-TL-H with quantity into BOM. Icapacitors.com does NOT require any registration to request a quote of MCH4015-TL-H.
We are offering MCH4015-TL-H for competitive price in the global market, please send us a quota request for pricing. Thank you!

Payment Methods
Delivery Services

MCH4015-TL-H - Product Attributes

Categories	Discrete Semiconductor Products / Transistors - Bipolar (BJT) - RF
Datasheet	MCH4015
Standard Package	3000
Manufacturer	ON Semiconductor
Series	-
Packaging	Tape & Reel (TR)
Part Status	Active
Transistor Type	NPN
Voltage - Collector Emitter Breakdown (Max)	12V
Frequency - Transition	10GHz
Noise Figure (dB Typ @ f)	1.2dB @ 1GHz
Gain	17dB
Power - Max	450mW
DC Current Gain (hFE) (Min) @ Ic, Vce	60 @ 50mA, 5V
Current - Collector (Ic) (Max)	100mA
Operating Temperature	150°C (TJ)
Mounting Type	Surface Mount
Package / Case	SOT-343F
Supplier Device Package	4-MCPH
